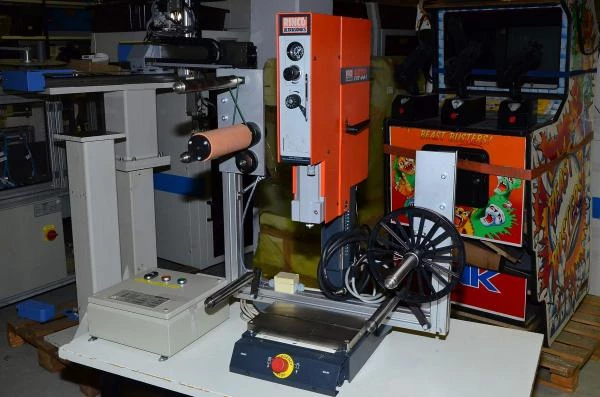

Rinco Ultrasonics MP 351 ultrasonic welding machine model 4

Manufacturer:

Rinco Ultrasonics
Model:
Rinco Ultrasonics MP 351 model 4
Dimension:
550 x 540 x 730 mm
Weight:
62.50 kg

Availability: Out of Stock
Condition: Used

Price Including VAT: 1506€
Ex Tax: 1200€

Available Options

Do you want to leave something off?

(1 pcs) No extra items (1 pcs) (-313,75€)

Quantity

pcs

Make an offer

0 reviews / Write a review

This is the device which gets the job done. Just install the equipment that you need, connect ultrasonic power generator and you are almost ready to start job. You are only missing the programming of parameters in power supply.

This device model contains:

Internal stuff (equipped by default):
- Electronics and pneumatics that belongs inside Rinco MP351.
- Rinco's connection cable from operating switches and device electronics.
External stuff (varies between models):
- SMC EVHS2000-F02 valve
- SMC EAF2000-F02D filter
- Pneumatic air supply hose with quick connector
- Cable from piezo element to 35kHz ultrasonic generator.
- Bottom plate
- Operating button panel
- Work piece holder with T-slot
- Sturdy side mounts from aluminium profile. Motorized roller was used for applying some sort of protection film during welding. Mounts can be removed upon purchase free of charge, if desired.
Enekos 503024.1 motor control unit:
- Rittal KL1507 electrical box contains:
  - 3x Klockner Moeller RMQ-Titan series switches
    - 4x NO contact blocks
    - 1x White LED lamp block
    - 1x Green LED lamp block
    - 1x Green illuminated push button
    - 1x Yellow illuminated pushbutton
    - 1x + and - illuminated dual switch
  - DE-9F interface connector
  - Power module with:
    - IEC power socket
    - 2x Fuseholders
    - 1x mains switch
  - 1x PLC Omron CPM1A-20CDR-A-V1
  - 1x Murr elektronik MPS3-230/24 (in 230VAC out 24VDC / 3A)
  - 1x Electromen EM-101 DC-motor controller 24V 3A 4-Quad
- 1x Electrical motor
- 1x inductive sensor Balluff BES 516-324-E4-C
If buyer wants to buy this welding machine with out extra items (Enekos box and aluminium supports), they will be stripped upon purchase and we lower the price for 250€ VAT 0%. Remember to make the selection before placing order.

These are sold separately (Hardware which is not included into default shipment)
- Piezoelectric converter
- Booster
- Horn (Sonotrode)
- Jig / endpiece

*Pictures from inside of a device has been taken from similar unit. Unit for sale might differ with internal stuff from the unit which is shown in pictures showing off it's internal stuff.

Ultrasonics can be used for:
