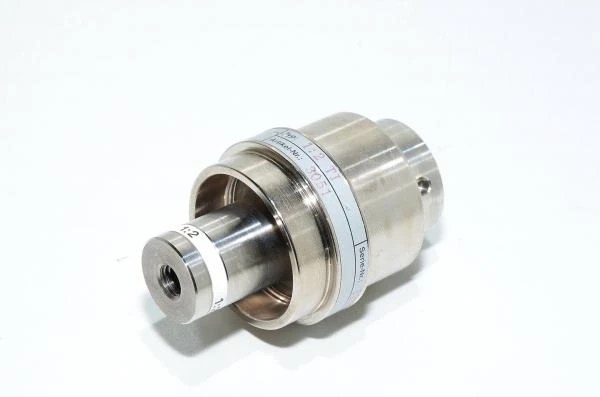

Rinco Ultrasonics 1:2 TI 3051 white titanium 35kHz booster amplifier with shoulder for ultrasonic welding devices

Booster functions as an mechanical vibrations amplifier. The function is based on precise tooling of the component to achieve desired mechanical resonance in desired operating frequency. Booster can decrease or increase mechanical vibration. Between those two types is a plan coupling element which does not modify the amplitude in any way. Coupling element features no gain at all.

Download Branson TL-2 ultrasonic boosters and amplitudes reference guide

Download Dukane guide to plastic assembly with ultrasonic welding

Booster element technical information:

• Operating frequency:
  • 35kHz
• Model:
  • 1:2 TI 35kHz white with shoulder
• Article number:
  • 3051
• Gain (amplification):
  • x2 (increase amplitude)
• Compatibility:
  • All Rinco ultrasonic transducers (converters) which operate at 35kHz.
• Ultrasonic transducer connection:
  • M8x1.25 attachment
• Ultrasonic horn (sonotrode) connection:
  • M8x1.25 attachment
