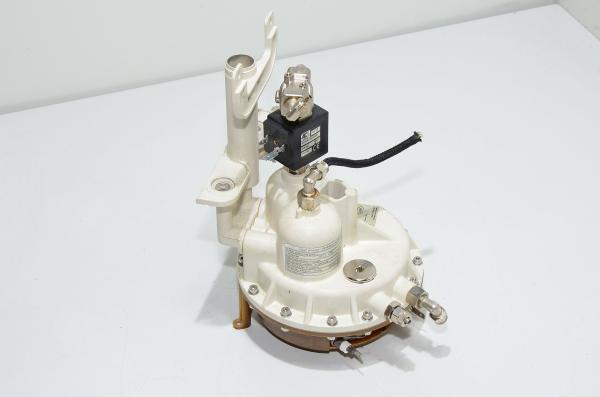

Steam generator S521604X and ACL D306BV25G2/201 solenoid valve

A steam generator is a device used to produce steam by heating water. It is commonly used in a variety of applications where steam is required for heating, cleaning, or power generation. This steam generator model S521604X, combined with the ACL D306BV25G2.201 solenoid valve, offers a robust solution for demanding steam applications. Its high-quality construction, precise control, and comprehensive safety features make it an indispensable component in industrial, laboratory, and specialized cleaning environments. The steam generator model is a high-performance unit designed for applications requiring precise and reliable steam production. This system is engineered to meet the rigorous demands of industrial, laboratory, and specialized cleaning environments.

Steam generator technical details:

• Model number:
  • S521604X
• Maximum pressure:
  • 3bar
• Power rating:
  • 2kW
• Capacity:
  • 0.45 liters
• Max operating temperature:
  • 144°C
• Voltage:
  • 230VAC
• Material:
  • Constructed from stainless steel or other corrosion-resistant materials to withstand high-pressure steam
• Safety features:
  • Port for steam generator overpressure valve
  • Port for output's overpressure valve
  • 2x holse for 3mm temperature probe and temperature switch
• Heating element:
  • Electric, designed for rapid water heating to produce steam
• Safety features:
  • Overpressure protection.
  • Over-temperature protection

Solenoid valve ACL D306BV25G2/201:

• Type:
  • Normally closed solenoid valve
• Voltage:
  • 24VDC
• Material:
  • Body:
    • Brass
  • Seals:
    • Teflon or viton for high-temperature resistance
• Operating temperature:
  • 144°C
• Max pressure rating:
  • 4bar

Additional features:

• Mounting:
  • Brackets and fittings for secure installation
• Compatibility:
  • Suitable for use in various industrial and laboratory settings
• Maintenance:
  • Easy to service and maintain, with replaceable components

Application examples:

• Industrial processes:
  • For steam generation in manufacturing, cleaning, and sterilization processes
• Laboratory use:
  • Providing controlled steam for experiments, tests, and equipment operation
• HVAC systems:
  • Used in steam humidification and other temperature control applications
• Cleaning equipment:
  • Steam cleaning and sanitization systems
