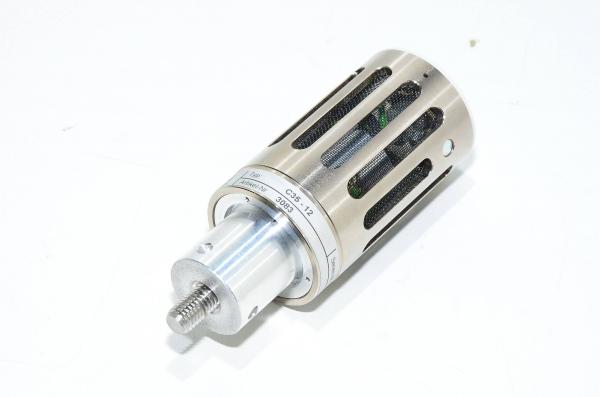

Rinco Ultrasonics C35-12 3083 35kHz piezoelectric transducer (converter) for ultrasonic welding devices

Piezo converter converts 35kHz electrical signal from ultrasonic welding device power supply into mechanical vibration. That is why converter is very essential part of ultrasonic welding.

Piezoelectric transducer technical information:

• Operating frequency:
  • 35kHz
• Model:
  • C35-12
• Article number:
  • 3083
• Housing:
  • Open steel housing
• Electrical connector:
  • Female coaxial cable connector Lemo ERA.1S
• Air cooling:
  • Possible to add a connector which fits into a M5 threads. This connector can be connected into cooling air supply.
• Max operating temperature:
  • 50°C, if used in warmer temperature or at constant use then converter requires air cooling.
• Compatibility:
  • All Rinco ultrasonic generators (power supplies) which operate at 35kHz.
• Ultrasonic booster amplifier connection:
  • M8x1.25 attachment
