Rinco Ultrasonics SV20-100 6105 20kHz special ultrasonic welding actuator + mounting bracket *booster clamp is missing*

  • Rinco Ultrasonics SV20-100 6105 20kHz special ultrasonic welding actuator + mounting bracket *booster clamp is missing*
    Rinco Ultrasonics SV20-100 6105 20kHz special ultrasonic welding actuator + mounting bracket *booster clamp is missing* Rinco Ultrasonics SV20-100 6105 20kHz special ultrasonic welding actuator + mounting bracket *booster clamp is missing* Rinco Ultrasonics SV20-100 6105 20kHz special ultrasonic welding actuator + mounting bracket *booster clamp is missing* Rinco Ultrasonics SV20-100 6105 20kHz special ultrasonic welding actuator + mounting bracket *booster clamp is missing*
  • Manufacturer:
    Rinco Ultrasonics
    Rinco Ultrasonics
  • Model:
    Rinco Ultrasonics SV20-100 6105 + mounting bracket *no clamp*
  • Dimension:
    520 x 156 x 235 mm
  • Weight:
    16400 g
  • Availability: 1pcs
  • Condition: Used
  • Price Including VAT: 1179.70€

  • Ex Tax: 940€
pcs


Make an offer

This is the device which gets the job done. Just install the equipment that you need, connect ultrasonic power generator and you are almost ready to start job. You are only missing the programming of parameters in power supply. This device is designed for assembly into special purpose machines.

Download Rinco ultrasonics SV35-100/50, SV20-100/50 special welding actuator technical datasheet

Download Rinco ultrasonics SV35-100-1/50-1 special welding actuator user manual

Download Branson TL-2 ultrasonic boosters and amplitudes reference guide

Download Dukane guide to plastic assembly with ultrasonic welding

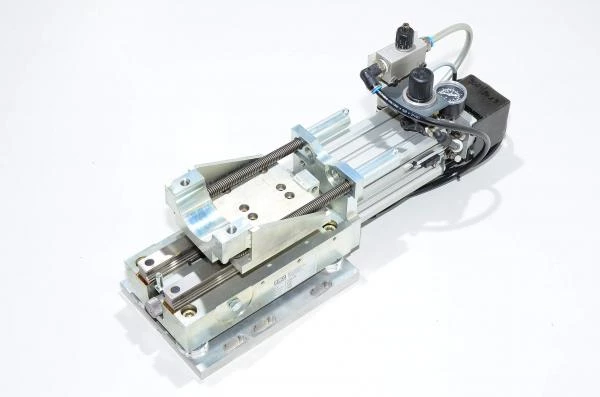

Unit comes mounted into heavy duty aluminium cradle, which allows excellent adjusting abilities and easy profile mounting thanks to it's keyway at the bottom.

This unit on sale has missing booster clamp (U-shaped piece of aluminum which is used to clamp down the ultrasonic package into its place). This unit also lacks 2x linear guide roller cages (Suitable roller cages might appear in our selection when we get to process and list our roller cages into webshop).

Runner block compatible with the linear guide rail:

  • Rexroth Star 1623-824-10 linear guide rail carriage ball slide, preload 0.08C, normal accuracy, steel version

These are sold separately (Hardware which is not included into default shipment)

  • Piezoelectric converter
  • Booster
  • Horn (Sonotrode)
  • Jig / anvil

Ultrasonics can be used for:

  • Cutting
  • Welding
  • Packaging
  • Inserting inserts
  • Riveting
  • Washing
  • Seaming

Example of industries which may use ultrasonic equipment:

  • Automotive industry
  • Medical device industry
  • Packaging industry
  • Electrical engineering industry
  • Machinery construction industry
  • Telecommunications industry
  • Food industry
  • Cosmetics industry
  • Household & leisure appliance industry
  • Laboratory
Ultrasonic welding
Article number 6105
Frequency 20kHz
