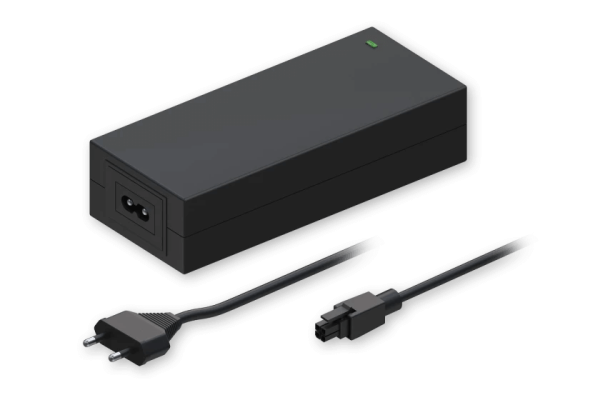

Teltonika EU power supply 62W *new*

Teltonika EU power supply, 62W

Power supply technical details:

• Technical data:
  • Input voltage:
    • 100...240VAC
  • Input frequency:
    • 50/60Hz
  • Input current:
    • 1.5A
  • Input connector:
    • EU (Type C)
  • Output voltage:
    • 48VDC
  • Output current:
    • 1.3A
  • Output connector:
    • 4-pin, 3 mm pitch
  • Input voltage range:
    • 90...264VAC
  • Input frequency range:
    • 47...63Hz
  • Maximum input inrush current:
    • 50A
  • Output voltage maximum deviation:
    • 45.6...50.4VDC
  • Short circuit protection:
    • Yes
  • HIPOT (dielectric withstand test):
    • Primary to Secondary: 4000VDC
  • MTBF:
    • 50000h
  • Certification:
    • Safety:
      • IEC/EN 61558-1:2005+A1:2009
      • IEC/EN 61558-2-16:2009+A1:2013 (CB Scheme)
    • EMC:
      • EN 55032:2012+AC:2013
      • EN 61000-3-2:2014
      • EN 61000-3-3:2013
      • EN 55024:2010+A1:2015
• Compatible products:
  • SW100

Download Teltonika EU power supply 62W technical datasheet
