8x 12VDC 4,3A output, 100-240VAC 4-2A input Bluelec TB0545 Multi output PSU, 19" 1U rack mount, 16x protected outputs

  • 8x 12VDC 4,3A output, 100-240VAC 4-2A input Bluelec TB0545 Multi output PSU, 19" 1U rack mount, 16x protected outputs
    8x 12VDC 4,3A output, 100-240VAC 4-2A input Bluelec TB0545 Multi output PSU, 19" 1U rack mount, 16x protected outputs 8x 12VDC 4,3A output, 100-240VAC 4-2A input Bluelec TB0545 Multi output PSU, 19" 1U rack mount, 16x protected outputs 8x 12VDC 4,3A output, 100-240VAC 4-2A input Bluelec TB0545 Multi output PSU, 19" 1U rack mount, 16x protected outputs 8x 12VDC 4,3A output, 100-240VAC 4-2A input Bluelec TB0545 Multi output PSU, 19" 1U rack mount, 16x protected outputs 8x 12VDC 4,3A output, 100-240VAC 4-2A input Bluelec TB0545 Multi output PSU, 19" 1U rack mount, 16x protected outputs 8x 12VDC 4,3A output, 100-240VAC 4-2A input Bluelec TB0545 Multi output PSU, 19" 1U rack mount, 16x protected outputs
  • Manufacturer:
    Bluelec
    Bluelec
  • Model:
    Bluelec TB0545 Multi output PSU
  • Dimension:
    489 x 515 x 44decimal_point30 mm
  • Weight:
    8370 g
  • Availability: 1pcs
  • Condition: Used

  • Price Including VAT: 690,25€

  • Ex Tax: 550€
pcs


Make an offer

0 reviews / Write a review

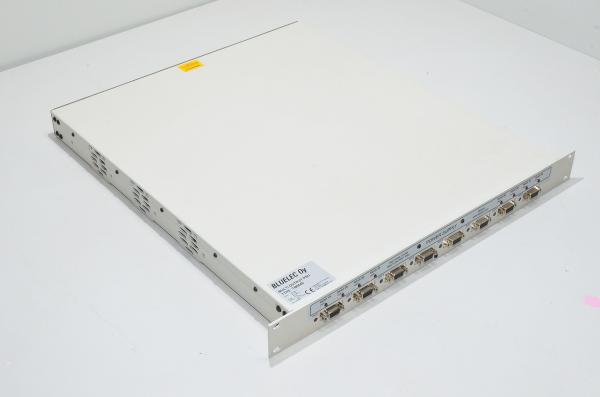

19" rack power supply. Made by Bluelec for some sort of a test appliance. This unit has a 8x 12VDC 4,3A 51,6W output, 85...265VAC or 120...330VDC input TDK JWS50-12/A switching mode power supplies. Outputs are routed to 4x quad power protector circuit PCB's. These PCB's are marked as Bluelec quad power switch PB0545 V2.1. One board has 2x LM224 quad operational amplifiers and 4x IRLIB9343 P-channel MOSFET's in order to switch the power output. This unit has 8x DB-9F (9 pin female D connectors) in the front and at the back. Power supplies output can be trimmed between 10,8...13,2VDC. One may rip 2A through each input.

Power supplies
Cable Length Connectors at the front and at the back
Compatible or alternative model markings Bluelec TB0545 TDK JWS50-12/A Lambda JWS50-12/A Densei-Lambda JWS50-12/A
Fuse rating T6,3A
Indicator light Outputs have LEDs Power supplies have LED Protection circuit has LEDs
Input connector type IEC 60320 C14 power connector
Input voltage 100-240VAC (85...265VAC or 120...330VDC)
Input voltage frequency 50-60Hz
Known compatible devices Compatible with numerous types of electrical devices
Max input current 2-4A
Max output current 4,3A/power supply 2A/ output
Max output power ~480W
Output connector pinout Pin 1, 2, 6 = V+ Pin 4, 5, 9 = V-
Output connector type 168x DB-9F
Output voltage 8x 12VDC
Thermal fuse Unknown
