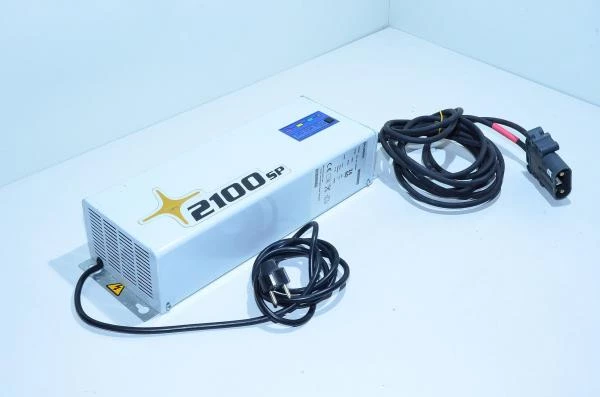

Exide Technologies SP24S060S 2100SP intelligent forklift charger input 230VAC 10A output 24VDC 60A + Rema DIN160 male connector

Charger for electric lifters, forklifts or for charging other machinery.

Charger technical details:

• Length of charging cables:
  • 2,8m
• Power cable length:
  • 2,3m
• Operating voltage:
  • 230VAC
• Max operating current:
  • 10A
• Output voltage:
  • 24VDC
• Max output current:
  • 60A
• Charging method:
  • Fully automatic high frequency switching mode power supply based battery charger
• Charging cable connectors:
  • Rema DIN160 male connector
• Other things worth mentioning:
  • The entire charger is implemented almost completely without the use of electrolytic capacitors (there was literally a couple of small elco's somewhere on the control side). This is merely an advantage, as one very common cause of equipment failure is the failure of electrolytic capacitors. There are no electrolytic capacitors in here, so in theory this can last forever.
• Configuration capabilities (Internal DIP switches):
  • Allow for limiting the max output current for:
    • 60A
    • 55A
    • 50A
    • 45A
    • 40A
    • 35A
    • 30A
  • Allow for changing charging profile:
    • 1 "S" Standard classic
    • 2 "D" Sonnenschien/Drysafe
    • 3 "L" Liberator
    • 4 "C" Champion
    • 5 "H" Liberator + Air
  • Push down charging button for 5s in order to check the charging profile. The Indicator LED will flash orange as many times according to which profile is in use and end the sequence with green flash. This will be repeated 3x times. For example 3x orange flashes = Profile 3 "L" Liberator.
