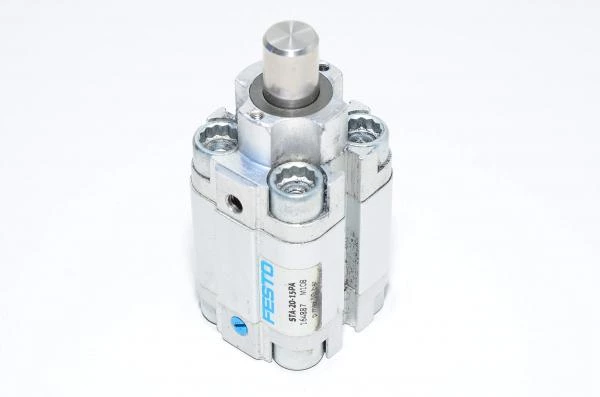

Festo STA-20-15PA 164887 double-acting locking cylinder with spring return

Manufacturer:

Festo
Model:
Festo STA-20-15PA 164887
Dimension:
80 x 38 x 37 mm
Weight:
208 g

Availability: Out of Stock
Condition: Used

Price Including VAT: 31,38€
Ex Tax: 25€

Quantity

pcs

Make an offer

0 reviews / Write a review

Special cylinder for stopping or separating when transporting workpiece carriers or pallets. Stopping cylinder provides smooth, low noise and safe stopping for your production line.

Download Festo STA/STAF series stoppr cylinders technical datasheet

Pneumatics
Air connection	M5x0.8
Cylinder bore size	20mm
Filtration rate	min 40µm
Magnetic piston	Yes
Max working pressure	1.0MPa (10bar)
Min working pressure	0,15MPa (1.5bar)
Operating medium	Compressed air, lubed or non-lube
Operating temperature	0...60°C
Operation	Single acting / Double acting (spring return)
Rod connection	No connection, rod acts as a stopping pin
Shock absorption	Flexible cushioning rings / plates at both ends
Stroke	15mm

Tags: Festo, STA-series, M5, 20mm, 15mm, locking cylinder, cylinder, actuator, locking actuator, double-acting, locking, stopping cylinder, stopper cylinder, stopping actuator, stopper actuator, single-acting
