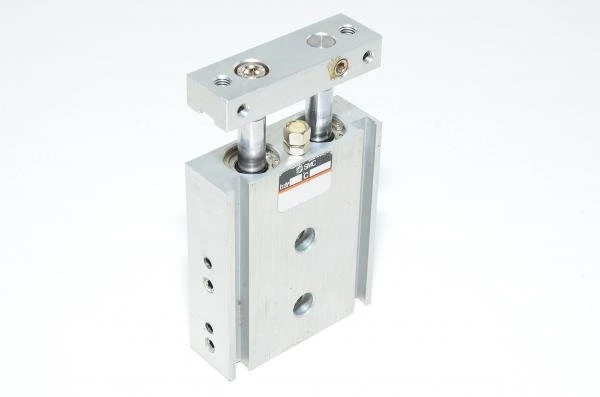

SMC CXSM15-10 Dual Acting Dual Cylinder Actuator, Slide Bearing

Model:
SMC CXSM15-10
Dimension:
88 x 57 x 20 mm
Weight:
253 g

Availability: 24pcs
Condition: Used

Price Including VAT: 37,65€
Ex Tax: 30€

Quantity

pcs

Make an offer

Great multipurpose pneumatic dual-rod actuator. The SMC CXS series cylinder family is ideal for various pick-and-place applications thanks to twin-rod design CXS will output twice the thrust in exchange for more compact size. Double rod design also gives great non-rotating accuracy up to +/-0.1°. Each SMC CSX series pneumatic cylinder comes with small adjustable rubber bumper which allow user to adjust the stroke from 0 to -5mm. Cylinder is made in a way that user can mount workpiece into threaded mounting holes on all 3 long sides of a plate.

Pneumatics
Air connection	M5 x 0,8
Cylinder bore size	15mm
Filtration rate	5µm
Guide type	Slide bearing
Magnetic piston	Yes
Max working pressure	0,7MPa (7bar)
Min working pressure	0,1MPa (1bar)
Operating medium	Compressed air, lubed or non-lube
Operating temperature	-10...60C
Operation	Double acting
Piston speed	30-700mm/s
Shock absorption	Rubber bumper
Stroke	10mm
