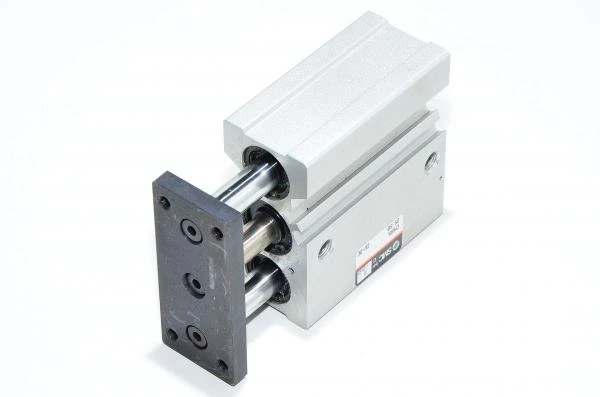

SMC EMGQL25-50 Compact Guide Cylinder, Ball bushing bearing

Manufacturer:

SMC
Model:
SMC EMGQL25-50
Dimension:
130 x 88 x 42 mm
Weight:
1094 g

Availability: 2pcs
Condition: Used

Price Including VAT: 94,13€
Ex Tax: 75€

Quantity

pcs

Make an offer

Compact guide cylinder from SMC. SMC MGQ-series cylinders are equiped with guides that ensure good resistance against non-lateral loads, which makes them excellent stopper elements. Ball bushing bearing used in this series allows smooth and accurate operation needed in demanding pushing and lifting applications. Additionally EMGQL25-50 has been equipped with built-in magnets that make it possible to read piston location information with auto swiches and pass it on to programmable logic controllin your process.

Pneumatics
Air connection	M5
Allowable lateral load	72N
Allowable rotational torque of plate	2.00Nm
Auto switch	No
Cylinder bore size	25mm
Filtration rate	5µm
Guide type	Ball bushing bearing
Magnetic piston	Yes
Max working pressure	1,0MPa (10bar)
Min working pressure	0,1MPa (1bar)
Non-rotating accuracy	+/- 0,09 degrees
Number of auto switches	0
Operating medium	Compressed air, lubed or non-lube
Operating temperature	-10...60C
Operation	Double acting
Piston speed	50-500mm/s
Shock absorption	Absorption pads on both ends
Stroke	50mm
Thread type	N/A
