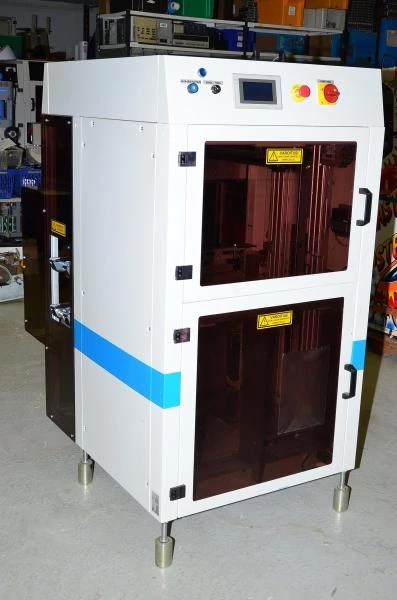

PMJ Automec L-tray Feeder 20021577

Large tray handler as part of an industrial process.

Main purpose of this device has been to buffer out the fluctuations during the production. Buffering will take action when the process has "over production". When this happens the tray feeder will store excess production by temporary storing notable amount of full trays into itself. When situation changes and there is "under production" the feeder will balance out the situation and feed the stored pallets back to the system. Reasons for such fluctuations might be caused when one of the production cells are being repaired or simply refilled with parts or raw material. With out this kind of buffering method the whole process will stop, but because of this the production can go on for some time. In other words machines stay on up and running as long as the stuff lasts.

Device can be used as is for handling and buffer storing trays full of small products. What the end user must do is obtain suitable plastic trays according to their product dimensions and hooking this unit up to existing production line. Tray will be used for transporting the products into the temporary storage and out of it.

Automation cell can be used as a hull for own project. Here is a couple of ideas what you could build out of this:

• Laser cutter
• Laser engraver
• 3D printer
• PCB router
• Milling machine / cutter for softer materials

We have tried to make the list as accurate as possible. Even though there might be some errors. Machines are sold in a condition as they are for some custom modification use or spare part use. They should work since they are taken directly from working production line, but there is no way for us to completely test them. If you have any questions or you just need some part from this unit feel free to ask us about it.

Since this unit is pretty heavy and big ask us about the shipping fee for your location. We offer free delivery to your doorstep anywhere in Finland in case the total amount of purchase goes over 28000€ VAT 0%

Things worth mentioning inside this device:

• Logics
  • 1x Omron V600-CD1D-V3 identification system controller
  • 1x Omron CPM2C programmable CPU
  • 2x Omron CPM2C-24EDT1C I/O expansion module
  • 1x Omron CQM1-PA203 power supply
  • 1x Omron CQM1H-CPU51 programmable control CPU unit
    • 1x Omron CQM1H-SCB41 serial communication board
    • 1x Omron CQM1H-PCB21 pulse I/O board
  • 1x Omron CQM1-ID213 input unit
  • 1x Omron CQM1-OD216 output unit
  • 1x Omron NT20S-ST121-EV3 Interactive display
• Drivers:
  • 2x Maxon motor 135167 1-Q-EC Verstärker
  • 1x Omron R88D-UP20V AC servo driver
  • 1x Omron R88D-UP08V AC servo driver
  • 1x Omron Sysdrive 3G3JV-AB004 inverter
  • 2x Eurogi SYS-ENC01-0EE driver
  • 1x Omron NT-AL001 RS232C / RS422A converter
  • 2x Omron E6C2-CWZ5B rotary encoder
• Power supplies:
  • 1x Omron SS8PS-05024CD
  • 1x Omron SS8PS-15024CD
• Motors:
  • 1x Omron R88M-U75030VA-S1
  • 1x Omron R88M-U20030VA-S1
  • 2x Benzlers BM 63D4
  • 2x Maxon motor 144962 EC motor
• Pneumatics:
  • 1x Festo LFR-1/4-D-MINI 159631 air regulator with meter
  • 1x Festo HEE-D-MINI-24 172958 valve
  • 1x Festo FRM-D-MINI 170684 branching module
  • 1x Festo PEV-1/4A-SW27 159259 pressure switch
  • 2x SMC ZMA131HT-K5-T54C ejector
  • 4x SMC CDJPB10-15D cylinder
  • 2x SMC CDQSB16-20D cylinder
  • 2x Festo DGPL-18-370-PPV-A-GF-B 161974 linear slide unit
  • 2x Festo CZH-2,5/9-10B 164991 cylinder
  • 2x SMC MA330-AM5-X363 tool changer counterpart
  • 1x SMC YNM5-X363 tool changer
  • 1x SMC MXS6-20 slide table
  • 1x SMC ECDQ2B32-15D cylinder
  • 16x Suction cup mounts
  • 1x SMC MXS8-50 slide table
  • 1x SMC MGPM12-10 guided cylinder
  • 1x SMC MDSUB7-180S rotary actuator
  • Bunch of quick fitting connectors and flow adjusters
  • Pneumatic supply hose which is seen in picture is cannibalized into our own use
• Mechanics:
  • 1x Flexlink Z-5981746-10 conveyor belt unit
    • Single track XT light L1=905
    • Shaft: 74mm from center
  • 1x 215x305x275mm electrical enclosure made of steel
  • 1x ~740mm Ø15mm balls crew
  • 2x 985mm IKO LWES15 inear guide rails with 4x carriage assemblies
  • 1x ~980mm Ø20mm balls crew
  • 4x 70mm IKO LWL15BCS inear guide rails with 4x carriage assemblies
  • 2x ~1200mm Ø15mm balls crews with encoders
  • 4x ~885mm IKO LWES15 inear guide rails with 8x carriage assemblies
  • 1x ~350mm Igus 071.20 energy chain cable holder
  • 1x ~550mm Igus 071.30 energy chain cable holder
  • 1x ~600mm Igus 250.03.075 energy chain cable holder
  • Bunch of aluminium profiles, stainless steel structures and other supports
• Electrical equipment:
  • 6x Omron J7K-AMA-10-D contactor
  • 3x Omron J73K-AM11 auxiliary contacts
  • 25x Phoenix contact PLC-BSC-24DC/21 2966016 + REL-MR-24DC/21AU 2961121 relay
  • 1x Omron G7S-4A2B relay
  • 1x Omron G7S-3A3B relay
  • 2x Omron D4DL-ICFG-B small door lock switch
  • 1x Omron D4DL-15FS small door lock switch
  • 3x Omron P2RF-08-E + Omron G2R-2-SND relay
  • 1x Omron E3Z-R81 optical sensor
  • 2x Omron E3Z-D81 optical sensor
  • 1x Omron E3S-AD83 photoelectric switch
  • 1x Le Grand 06633 D16 fuse 2~
  • 1x Merlin Gerin Multi 9 C60N D10 fuse 2~
  • 3x General electric series G100 D10 fuse 1~
  • 5x 5x20mm glass tube fuse holder
  • 1x Allen Bradley 194E-E32-PE 1753 + 194E-E32-PE main switch
  • 1x Schaffner FN350-30-33 EMI filter
  • 1x DIN rail mounted Schuko socket
  • 1x Klockner & Moeller RMQ-Titan series push button
  • 1x Telemecanique XB2 series emergency switch
  • 1x Telemecanique XB2 series key switch
  • 1x Allen & Bradley push button
  • 1X Fluorescent light
  • Bunch of various terminal blocks, connectors, autoswitches and cables

Device's type plate markings:

• Manufacturer:
  • PMJ Automec Oyj
• Type and serial number:
  • 20021577
• Connection power:
  • 2,5kW / 16A
• Operating voltage:
  • 230VAC / 1~ / 50Hz
• Year of manufacturing:
  • 2002
• Weight:
  • 515kg
• Devices documents number:
  • M99134
• Pressure / max flow rate:
  • 6bar (0,6 MPa) / 100 Nl/min
