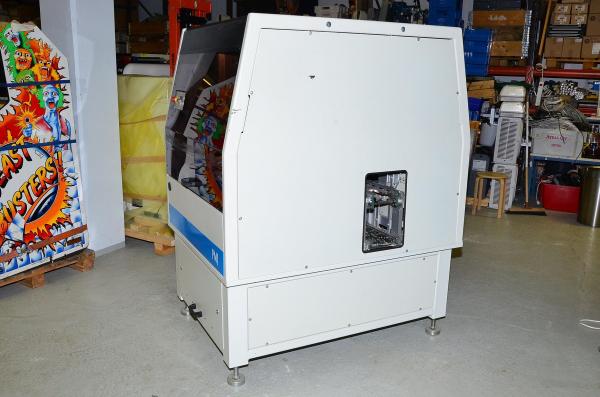

PMJ Automec hot / cold stamping cell 20011440

Manufacturer:

PMJ Technologies
Model:
Device 5 PMJ Automec hot / cold stamping cell 20011440
Dimension:
1500 x 1100 x 1800 mm
Weight:
700 kg

Availability: 1pcs
Condition: Used

Price Including VAT: 5647,50€
Ex Tax: 4500€

Quantity

pcs

Make an offer

Description
Reviews (0)

Automation cell which is fitted with two heat welding apparatuses. The cell received a workpiece holder with prefabricated/preassembled piece (in this case cell phone cover) and then machine heats up some plastic pegs with the heating element and then heater element revolves out and cold head squeezed the heated plastic. This unit can be counted as a heat element welding device (HEW-device).

This automation cell has 2x hot / cold stamping assemblies and some conveyor belts for pallet transfer. This thing can be used as is and readjusted for own products or it can be modified to fulfill lots of other purposes.

Automation cell can be used as a hull for own project. Here is a couple of ideas what you could build out of this:

Laser cutter
Laser engraver
3D printer
PCB router
Milling machine / cutter for softer materials

We have tried to make the list as accurate as possible. Even though there might be some errors. Machines are sold in a condition as they are for some custom modification use or spare part use. They should work since they are taken directly from working production line, but there is no way for us to completely test them. If you have any questions or you just need some part from this unit feel free to ask us about it.

Since this unit is pretty heavy and big ask us about the shipping fee for your location. We offer free delivery to your doorstep anywhere in Finland in case the total amount of purchase goes over 28000€ VAT 0%

Things worth mentioning inside this device:

2x KVT Bielefeld Typ 19S Programmsteuerung (program control unit)
4x KVT Bielefeld Type 01-S Thermo-regler (temperature controller)
2x KVT Bielefeld GIG 1500 hot/cold stamping unit (two times all the stuff in this group)
- 2x 5pin metal connector
- 2x ~550mm metal hose for cable run
- 1x Festo CPE14-M1H-5JS-QS6 solenoid valve
- 1x Festo CPE14-M1H-5-LS-1/8 solenoid valve
- 2x Festo 0-16MPa pressure meter
- 1x Norgren 0-6MPa pressure meter
- 2x Mawomatic APA6.CP pressure sensor
- 3x Finder 44.52 relays with sockets + LED indicator units
- 1x Klökner & Möeller DIL-EM01 contactor
- 1x Klökner & Möeller DIL-EM10 contactor
- 2x Klökner & Möeller 22 D DIL E contactor auxiliary contacts
- 1x Klökner & Möeller RMQ22 indicator light
- Pile of terminal blocks
- 1x Ceramic tube fuse for Neozed D01 fuses + 16A fuse
- 1x Wago 182-122 glass tube fuse holder
- 1x ~550mm Igus 10.025.100 energy chain cable track
- 1x ~50mm cylinder with ~100mm stroke (requires dismantling of the device to find out for sure)
- 2x 380mm ball bearing slides
- 1x 430x125x21mm profile with triangular groves and 170x180x50mm sledge with stepless adjustment which is mounted into it
- 2x heating elements
- 1x Festo DSNU-25-100PPV-A cylinder operated 90° turning mechanism
- 2x Festo HGL-1/8 pilot operated check valve
- 1x Norgren 72S-D0014 (in other unit equivalent size Norgren Olympia series unit)
- 1X Excelon B72G-2GK-ST3-RFN (in other unit equivalent size Norgren Olympia series unit)
- 2X Festo GRI 7 metal flow controllers
- 1x Festo LFR-D-MINI filter regulator unit
- 1x Festo LR-D-MINI regulator
- 1x Wieland 70 350 1629 18pin connector
- 1x Wieland 70 330 16290 18pin connector
2x Omron D4DS-1AFS small door switch
2x Fluorescent lamp with 2x schuko sockets and 600mm tube
2x Metal fan 160mm 220VAC (possibly manufacturer is EBM PAPST)
2x Small locking emergency stop buttons
1x Small push button
1x ~4m H07RN-F 5G2,5 rubber cable with 16A male 3~ connector
Manufacturer of the following conveyor belt modules:
- First Door Oy
1x Conveyor belt module with:
- 2x Rittal KL 1515 metal electrical cabinet
  - 4x Omron G2R-2-SND relays with sockets
  - 1x Compressed air manifold with 4 places from which 2x are equipped with SMC SYJ3143-LOU-Q valves
  - 1x Maxon Motor 135167 1-Q-EC motor controller
  - 1x Rotary pot
  - Bunch of terminal blocks
  - 5x PG11 strain reliefs
  - 2x 6mm compressed air bulkheads
  - 4x 4mm compressed air bulkheads
- 1x Festo SLG-12-300-P-A rodless cylinder
- 2x Maxon motor 144962 EC motor DC motor + gear-set + encoder
- 4x Omron E3S-AD83 sensor
- 2x SMC AS1201F-04 flow controller
- 2x SMC MGQM 16-10 compact guide cylinder
- 1x Dunkenmotoren G42x40 DC motor
1x Conveyor belt module with:
- 2x Rittal KL 1515 metal electrical cabinet
  - 4x Omron G2R-2-SND relays with sockets
  - 1x Compressed air manifold with 4 places from which 2x are equipped with SMC SYJ3143-LOU-Q valves
  - 1x Maxon Motor 135167 1-Q-EC motor controller
  - 1x Rotary pot
  - Bunch of terminal blocks
  - 5x PG11 strain reliefs
  - 2x 6mm compressed air bulkheads
  - 4x 4mm compressed air bulkheads
- 1x Festo SLG-12-300-P-A rodless cylinder
- 2x Maxon motor 144962 EC motor DC motor + gear-set + encoder
- 4x Omron E3S-AD83 sensor
- 2x SMC AS1201F-04 flow controller
- 2x SMC MGQM 16-10 compact guide cylinder
- 1x Dunkenmotoren G42x40 DC motor
- 1x SMC ERSDQB 20-20D stopping cylinder with collar
1x Conveyor belt module with:
- 2x Rittal KL 1515 metal electrical cabinet
  - 4x Omron G2R-2-SND relays with sockets
  - 1x Compressed air manifold with 4 places from which 2x are equipped with SMC SYJ3143-LOU-Q solenoid valves
  - 1x Maxon Motor 135167 1-Q-EC motor controller
  - 1x Rotary pot
  - Bunch of terminal blocks
  - 5x PG11 strain reliefs
  - 2x 6mm compressed air bulkheads
  - 4x 4mm compressed air bulkheads
- 2x Maxon motor 144962 EC motor DC motor + gear-set + encoder
- 7x Omron E3S-AD83 sensor
- 2x SMC ECQ2B40-25D compact cylinder
- 1x Dunkenmotoren G42x40 DC motor
- 2x SMC ERSDQB 20-20D compact cylinder
- 2x Omron V600-CD1D-V3 identification unit
- 2x Omron V600-H11 read head
Equipment room downstairs:
- Allen Bradley 194E-E32-TN main switch
- 1x Festo 0-16MPa pressure meter
- 1x Festo LFR-D-MINI filter regulator
- 1x 5x port 10Mbps LAN hub
- Couple of LAN cables
- 1x SMC EVBA1110-F02 booster regulator
- 1x Festo CPE14-M1H-3GL-1/8
- 1x Festo pressure switch
- 1x Festo MFH-3-1/4 Solenoid valve
- Pile of terminal blocks
- 1x 4pin Harting metal connector
- 1x Omron Sysmac CQM1H-CPU51 programmable logic
- 1x Omron Sysmac PA216 power supply
- 1x Omron Sysmac OD214 output unit (this unit is sold and is not part of the entity any more)
- 1x Omron Sysmac OD216 output unit
- 1x Omron Sysmac ID213 input unit
- 1x Omron Sysmac ID212 input unit
- 1x Omron G9S-301 safety relay
- 6x Omron G2R-2-SND relays with sockets
- 1x Omron S82K-10024 100W 24VDC power supply
- 1x Omron S82K-01505 15W 5W power supply
- 9x Phoenix Contact USIG + SI-ST fuse holder for glass tube fuses
- 1x Larger contactor (20A) (acquiring model requires dismantling the device)
- 2x Contactor + auxiliary blocs (acquiring model requires dismantling the device)
- 1x Merlin Gerin Multi9 C60N D16 3~ automatic fuse 16A
- 4x Merlin Gerin Multi9 C60N D10 1~ automatic fuse 10A
- 2x Merlin Gerin Multi9 C60N D6 1~ automatic fuse 6A
- 4x Phoenix contact relay socket PLC-BSC-24DC/21 + REL-MR-24DC/21AU relay
- 1x ~600mm Igus 250.03.075 energy chain cable track
- 2x ~550mm slider units with ball bearings
- 1x PC which was used for process control, P3 age hardware
- 1x Omron S8PS-60024C 600W 24VDC 27A switching mode power supply
In addition to everything listed:
- Pile of cables
- Pile of hoses
- Pile of hose connectors
- Couple of limit switches

Mechanical info:

Inside dimensions WxHxD (about):
- Upstairs:
  - 1100x1100x1400mm
- Downstairs:
  - 110x370x1400
Upstairs steel table thickness:
- 24mm
Upstairs and downstairs can be accessed from both sides
Upstairs have 2x gas springs for each door
Downstairs doors can be locked with electrical cabinet locking key/tool And other side gives the possibility to pull out the electronics in steel drawer
