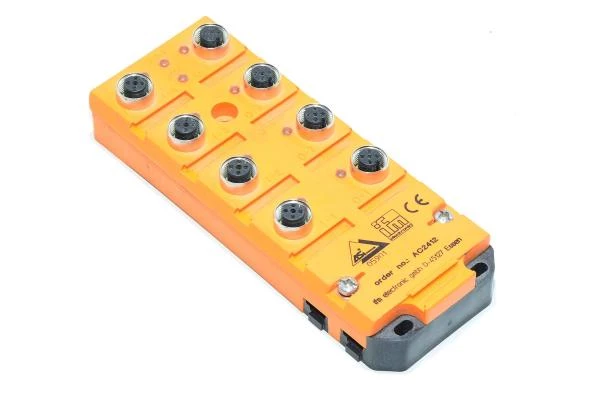

IFM AC2412 AS-i active CompactLine I/O module with 4x sourcing transistor outputs 24VDC 200mA and 4x sinking 24VDC inputs

AS-i interface (Actuator Sensor Interface) field bus component which is suitable to use as part of system where other components are compatible AS-i bus system. AS-i system transfers only little data (167kbit/s), but it delivers data fast (5ms). Because of this the bus is mostly used to transmit sensors and switches on/off state informations in a digital format.

Technical specifications:

IFM AC2412 AS-i active CompactLine I/O module with 4x sourcing transistor outputs 24VDC 200mA and 4x sinking 24VDC inputs

• Connections:
  • 8x M12x1
  • AS-i flat cable connectors
• Operating voltage:
  • 26,5...31,6VDC AS-i
  • 10...30VDC AUX
• Current consumption:
  • <250mA AS-i
  • 4000mA max /module
• Build-in inputs:
  • 4x sinking inputs
    • Max. 30VDC 200mA
• Input current limitation:
  • 15mA
• Input current "1" / "0":
  • >6mA / <2mA
• Switching level for "1" signal:
  • >11V
• Short-circuit proof:
  • Yes
• Build-in outputs:
  • 4x sourcing transistor outputs
    • 10...30VDC 200mA point / unit
• Electrically separated:
  • Yes
• Integrated watchdog:
  • Yes
• Short-circuit proof:
  • Yes
• Extended addressing mode possible
  • Version 2.11 and 3.0 / no
• AS-i-profile:
  • S-7.0.E
• I/O configuration:
  • 7 (Hex)
• ID-code:
  • 0.E (Hex)
• AS-i certificate:
  • 46001
• IP protection class:
  • IP67
• Materials used:
  • Housing material:
    • PA
  • Socket:
    • Brass nickel-plated
  • Threaded inserts in the lower part:
    • Brass nickel-plated
  • O-Ring (socket):
    • Viton
• Operating temperature:
  • -25...+80°C
