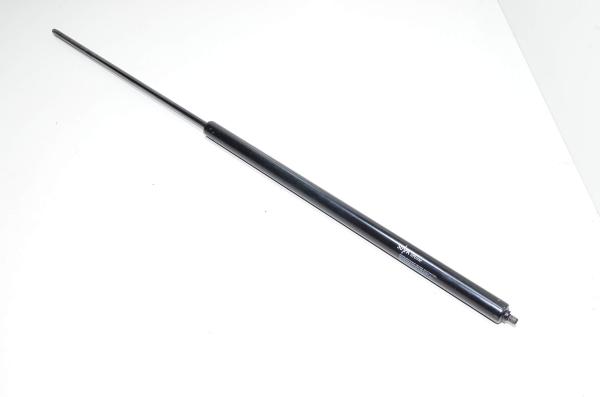

SUSPA liftline TYP16-4 01603235B 250N gas spring

  • SUSPA liftline TYP16-4 01603235B 250N gas spring
  • Manufacturer:
    Suspa
    Suspa
  • Model:
    SUSPA liftline TYP16-4 01603235B 250N
  • Dimension:
    862 x 22 x 22 mm
  • Weight:
    643 g
  • Availability: 70pcs
  • Condition: Used
  • Price Including VAT: 81.58€

  • Ex Tax: 65€
pcs


Make an offer

Gas springs are commonly used in various applications where controlled lifting, lowering, and positioning of objects are required. Gas springs have a constant and almost same thrust force throughout the stroke.

Spring technical details:

  • Tube diameter:
    • 22mm
  • Piston rod diameter:
    • 10mm
  • Rod end connection:
    • M8x125 thread, 9mm long
  • Cylinder bottom end connection:
    • M8x125 thread, 9mm long
  • Stroke length:
    • 395mm
  • Piston rod finish:
    • Induction hardened and black nitride coated
  • Gas spring force:
    • 250N
  • Operating temperature range:
    • -25...+80°C
  • Installation orientation:
    • Piston rod downward and maximum possible turning angle is 60°
  • Mallimerkinnät:
    • TYP16-4 01603235B
    • 16-4 01603235B
    • TYP16-4 01603235B-250N
    • 16-4 01603235B-250N

Download Suspa gas springs, dampeners and adjustment systems product catalog
