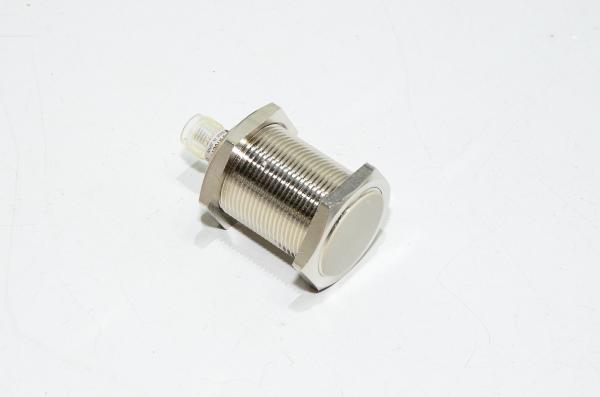

Omron TL-X10C1-P1E inductive proximity sensor, 12-24VDC NPN *new*

  • Omron TL-X10C1-P1E inductive proximity sensor, 12-24VDC NPN *new*
    Omron TL-X10C1-P1E inductive proximity sensor, 12-24VDC NPN *new* Omron TL-X10C1-P1E inductive proximity sensor, 12-24VDC NPN *new*
  • Manufacturer:
    Omron Industrial Automation
    Omron Industrial Automation
  • Model:
    Omron TL-X10C1-P1E *New*
  • Dimension:
    60decimal_point90 x 36 x 36 mm
  • Weight:
    104 g
  • Availability: 1pcs
  • Condition: New
  • Price Including VAT: 213,35€

  • Ex Tax: 170€
pcs


Make an offer

The inductive proximity sensor TL-X10C1-P1E is a device designed for the detection of metallic objects without physical contact. Its design makes it ideal for various industrial applications, including automation, robotics, manufacturing processes, and conveyor systems. The sensor combines  technology that provides accurate metal detection in demanding industrial environments. Its features and design make it the top choice for engineers and technicians seeking reliable and efficient sensor solutions.

Proximity sensor technical details:

  • Type:
    • Inductive proximity sensor
  • Model number:
    • TL-X10C1-P1E
  • Operating voltage:
    • 12...24VDC
  • Switching frequency:
    • 300Hz
  • Current consumption:
    • 15mA
  • Output load:
    • Max. 300mA
  • Residual voltage:
    • 2,5V
  • Output type:
    • NPN  NO (Normally open)
  • Sensing range:
    • 2mm
  • Protections:
    • Short-circuit and reverse polarity protection.
  • Hysteresis:
    • 15% of the sensing range
  • Target material:
    • Ferrous metals (best detection for iron and steel)
  • Indicators:
    • Operating LED yellow
  • Housing material:
    • Nickel plated brass
  • Dimensions:
    • M30x1 (cylindrical)
  • Connection:
    • M12 contactor
  • Protection class:
    • IP65
  • Operating temperature:
    • -25...+70°C

Application:

  • Typical applications:
    • Automation technology, robotics, manufacturing processes, conveyor systems, and any application requiring non-contact detection of metal objects.

Download Omron TL-series inductive proximity sensor technical datasheet

Sensors
Adjustable Yes
Ambient temperature -25...60°C
Attachement Threading
Connection M12 Connector
Coupling Connector
Current Consumption max. 35mA
Current rating - Function check output 10mA
Current rating - Switching output 200mA
Electrical design DC PNP
EMC EN 60947-5-2
Function display LED Red
Funtion check output Yes
Highly focussed beam Yes
Housing materials brass nickel-plated
Lens material PMMA
Light spot diameter 185mm (at maximum range)
Measurement range 0.001...0.4m
MTTF 607
Operating voltage 10...36V
Operation LED Green
Output function light-on / dark-on programmable
Output status indication LED Yellow
Overload protection Yes
Protection
Protection class II
Range referred to prismatic reflector
Reverse polarity protection Yes
Short-circuit protection Yes (non-latching)
Switching frequency 320Hz
Thread M12
Type Retro-reflective sensor
Type of light Infrared 880nm
Voltage drop - function check output <3,5V
Voltage drop - switching output <2,5V

Write a review

Please login or register to review

Tags: Omron, TL-X-series, inductive proximity sensor, sensor, connector, M30, proximity, proximity switch, inductive, threaded
