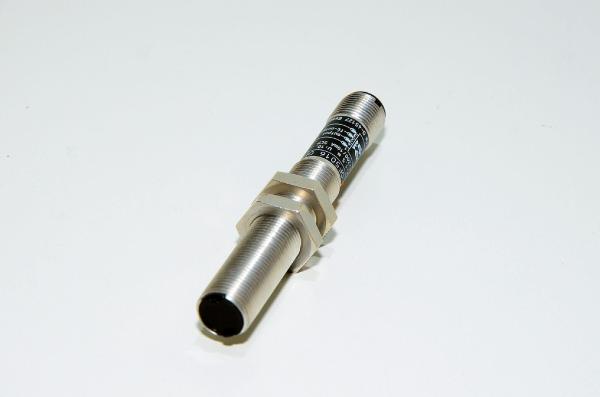

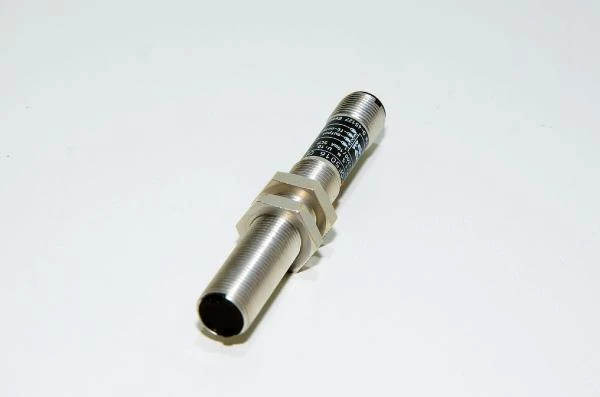

IFM OF5016 Retro-reflective sensor

Quantity

pcs

Make an offer

Retro-reflective infrared sensor from IFM for industrian usage.

Sensors
Adjustable	Yes
Ambient temperature	-25...60°C
Attachement	Threading
Connection	M12 Connector
Coupling	Connector
Current Consumption	max. 35mA
Current rating - Function check output	10mA
Current rating - Switching output	200mA
Electrical design	DC PNP
EMC	EN 60947-5-2
Function display LED	Red
Funtion check output	Yes
Highly focussed beam	No
Housing materials	brass nickel-plated
Lens material	PMMA
Light spot diameter	140mm
Measurement range	0.05...2m
MTTF	607
Operating voltage	10...36V
Operation LED	Green
Output function	light-on / dark-on programmable
Output status indication LED	Yellow
Overload protection	Yes
Protection
Protection class	II
Range referred to prismatic reflector	Ø 80mm 0,05...2m Ø 35mm 0,05...1,5m Ø 20mm 0,05...1,2m
Reverse polarity protection	Yes
Short-circuit protection	Pulsed
Switching frequency	320Hz
Thread	M12
Type	Retro-reflective sensor
Type of light	Infrared 880nm
Voltage drop - function check output	<3,5V
Voltage drop - switching output	<2,5V

Price Including VAT: 50.20€
