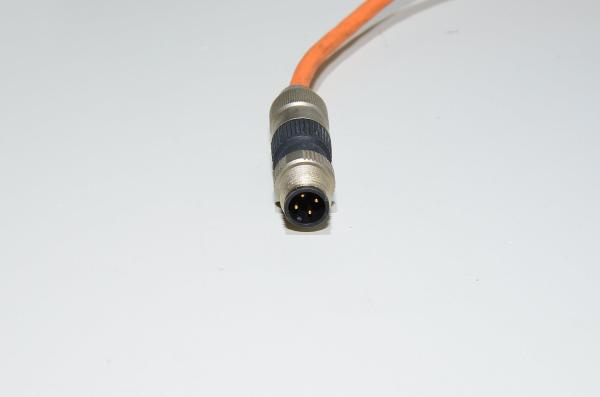

Sensor cable 4x 0.25mm² with M12 straight A-coded unshielded 4-pin sensor connector, male, plastic/metal, Harting Harax M12-S 21 01 140 4081, blade connection for 4-5.1mm cables

Sensor cable which can be used with wide variety of sensors and other information carrying devices. Sensor cables are an essential part of industrial automation in general. With out them... Well nothing would work.

Sensor cable technical details:

• Connector side A:
  • M12 straight A-coded unshielded 4-pin sensor connector, male, plastic/metal, Harting Harax M12-S 21 01 140 4081, blade connection for 4-5.1mm cables
  • Additional information about this connector can be gathered by checking our online store for this particular model or by downloading the technical datasheet from the bottom of the page.
  • Wiring:
    • Might vary between units
• Connector side B:
  • Nothing
• Max operating voltage:
  • 250VAC/300VDC
• Operating temperature:
  • -25...90°C
• IP-rating:
  • IP67
• Cable material:
  • Polyurethane (PUR) / Polyvinyl chloride(PVC)
• Cable wires:
  • 4x 0.25mm² (32x 0.1mm strands)
• Cable outer diameter:
  • 5mm
• Cable color:
  • Orange
• Cable model markings:
  • There are none

Download Harting industrial connectors technical datasheet (this harting connector model is found in here)

Download Harting M8/M12 circular sensor connectors technical datasheet

This is used sensor cable so make sure you select the cable length from the available lengths.

Connector pinout and wire colors are from manufacturers datasheet or from couple of our test measured units. It's up to user to either trust these or measure them prior to connection. Just as a precaution we recommend testing out the wiring just to be sure and not destroy anything.
