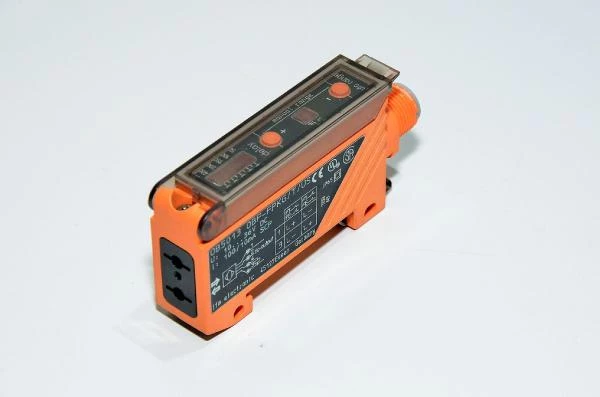

IFM OB5013 Fibre-optic Amplifier

Quantity

pcs

Make an offer

Fibre-optic amplifier from IFM for industrian usage.

Sensors
Adjustable	Yes
Ambient temperature	-25...50°C
Attachement	Screw mounting
Connection	M12 Connector
Coupling	Connector
Current Consumption	max. 35mA
Current rating - Function check output	10mA
Current rating - Switching output	100mA
Electrical design	DC PNP
EMC	EN 60947-5-2
Function display LED	Red
Funtion check output	Yes
Housing materials	Plastic
Measurement range	0.001...0.150m
Operating voltage	10...36V
Operation LED	Green
Output function	light-on / dark-on programmable
Output status indication LED	Yellow
Overload protection	Yes
Protection	IP 65
Protection class	II
Reverse polarity protection	Yes
Short-circuit protection	Pulsed
Switching frequency	500Hz
Type	Fibre-optic amplifier
Type of light	Red light 660nm
Voltage drop - function check output	<3,5V
Voltage drop - switching output	<2,5V
Sensors - Optical
Excess gain LED	4 x Green

Price Including VAT: 50,20€
