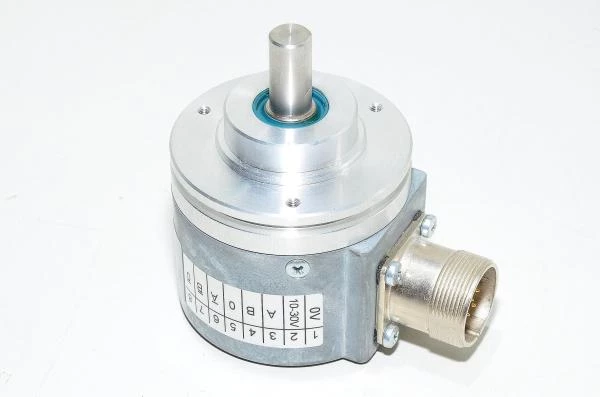

Pepperl+Fuchs 10-116MX_R-2500 incremental rotary encoder with 12pin male M23 connector *new*

Encoders in general provide rotational speed, direction and position information from your contraption. Depending on the unit, the output signal can vary from simple pulses all the way to an intelligent digital protocol.

Encoder technical details:

• Operating voltage:
  • 10...30VDC
• Max no load current:
  • 150mA
• Max operating frequency:
  • 100kHz
• Shaft size:
  • 10x20mm with 0,6x15mm flat spot
• Flange version:
  • Clamping flange
• Signal output:
  • A+B+0 and -A + -B + -0
• Output switching:
  • 10...30VDC, RS 422 (incremental)
• Material:
  • Housing material:
    • Die cast zinc
  • Flange:
    • Aluminium 3.1645
  • Shaft:
    • Stainless steel AISI 303
• Connectors exit position:
  • Radial (out from the side)
• Pulse count:
  • 2500 per revolution
• Max revolution speed:
  • 10000RPM
• Electrical connector:
  • Radial 9413
    • Also known as:
      • 12pin H connector
      • 12pin M23 connector
      • Hummel 7.410.000000
• IP classification:
  • IP65
• Pinout:
  • Pin 1:
    • 0V
  • Pin 2:
    • 10...30VDC (+U_b operating voltage)
  • Pin 3:
    • A
  • Pin 4:
    • B
  • Pin 5:
    • 0
  • Pin 6:
    • -A
  • Pin 7;
    • -B
  • Pin 8:
    • -0
  • Pin 9:
    • NC
  • Pin 10:
    • NC
  • Pin 11:
    • NC
  • Pin 12:
    • NC

Download Pepperl + Fuchs 10-xxxxX series incremental encoders technical datasheet
