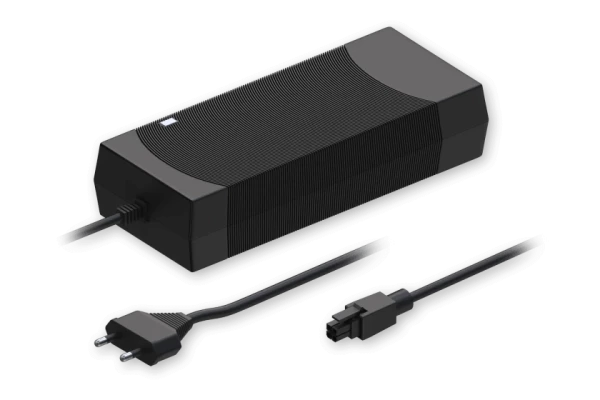

Teltonika EU power supply 130W *new*

Teltonika EU power supply, 130W

Power supply technical details:

• Technical data:
  • Input voltage:
    • 100...240VAC
  • Input frequency:
    • 50/60Hz
  • Input current:
    • 2.5A
  • Input connector:
    • EU (Type C)
  • Output voltage:
    • 50VDC
  • Output current:
    • 2.6A
  • Output connector:
    • 4-pin, 3 mm pitch
  • Input voltage range:
    • 90...264VAC
  • Input frequency range:
    • 47...63Hz
  • Maximum input inrush current:
    • 50A
  • Output voltage maximum deviation:
    • 47.5...52.5VDC
  • Short circuit protection:
    • Yes
  • HIPOT (dielectric withstand test):
    • Primary to Secondary: 4242VDC
  • MTBF:
    • 50000h
  • PSU efficiency standard:
    • DoE Level VI
  • Certification:
    • Safety:
      • EN 60335-1:2012+A11:2014+A13:2017
      • EN 60335-2-29:2004+A2:2010+A11:2018
      • EN 62233:2008
    • EMC:
      • EN 55014-1:2017
      • EN 61000-3-2:2014
      • EN 61000-3-3:2013
      • EN 55014-2:2015 (IEC 61000-4-2:2008
      • IEC 61000-4-4:2012
      • IEC 61000-4-5:2014
      • IEC 61000-4-6:2013
      • IEC 61000-4-11:2004+A1:2017)
• Compatible products:
  • TSW100

Download Teltonika EU power supply 130W technical datasheet
