6x 3-22VDC + 24VDC 3,5A 84W output, 100-240VAC 1A input PMJ TVi9714UNI power unit for test rack universal input

  • 6x 3-22VDC + 24VDC 3,5A 84W output, 100-240VAC 1A input PMJ TVi9714UNI power unit for test rack universal input
    6x 3-22VDC + 24VDC 3,5A 84W output, 100-240VAC 1A input PMJ TVi9714UNI power unit for test rack universal input 6x 3-22VDC + 24VDC 3,5A 84W output, 100-240VAC 1A input PMJ TVi9714UNI power unit for test rack universal input 6x 3-22VDC + 24VDC 3,5A 84W output, 100-240VAC 1A input PMJ TVi9714UNI power unit for test rack universal input 6x 3-22VDC + 24VDC 3,5A 84W output, 100-240VAC 1A input PMJ TVi9714UNI power unit for test rack universal input 6x 3-22VDC + 24VDC 3,5A 84W output, 100-240VAC 1A input PMJ TVi9714UNI power unit for test rack universal input
  • Manufacturer:
    PMJ Technologies
    PMJ Technologies
  • Model:
    PMJ TVi9714UNI power unit for test rack universal input
  • Dimension:
    482 x 132decimal_point50 x 115 mm
  • Weight:
    1825 g
  • Availability: 1pcs
  • Condition: Used

  • Price Including VAT: 100,40€

  • Ex Tax: 80€
pcs


Make an offer

0 reviews / Write a review

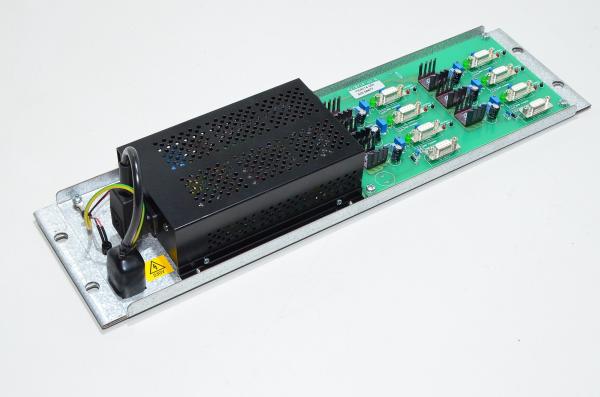

Power supply panel for 19" rack. Made by PMJ for some sort of a test appliance. This unit has a 24VDC 3,5A 84W output, 230VAC 1A input Mascot Type 9726 switching mode power supply with a TVi9714 UNI PCB connected into it's output. The PCB contains 6x DB-9F (9 pin female D connectors) and all of the outputs have individual trimmer adjustable voltage regulation circuit for output voltage adjustment between 3...22VDC. PCB has also 2x DB-9F connectors for 24VDC output.

Power supplies
Cable Length Terminated to PCB
Compatible or alternative model markings TVi9714 UNI TVI9714 MS Code: 00058 Version V1,5 Mascot Type 9726
Fuse rating Unknown
Indicator light LED, Green
Input connector type IEC 60320 C14 power connector
Input voltage 100-240VAC
Input voltage frequency 50-60Hz
Known compatible devices Compatible with numerous types of electrical devices
Max input current 1A
Max output current 3,5A
Max output power 84W
Output connector pinout Pin 1, 2, 6 = V+ Pin 4, 5, 9 = V-
Output connector type 8x DB-9F
Output voltage 24VDC 6x 3...24VDC
Thermal fuse Unknown
