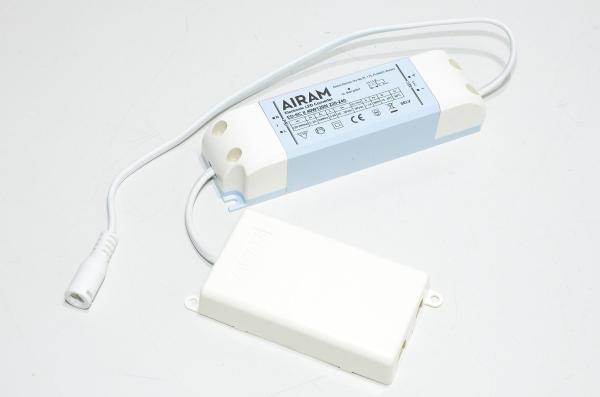

Max 50VDC 0,9A 30W out 220-240VAC in Airam ED-SC II 30W900I SMPS constant current power supply + 5,5x5,1 male DC connector

Constant current power supply which means this power supply does everything in it's power to output constantly the rated output current. This adjustment happens by varying the output voltage. To put it into other words, the power supply will increase the voltage until it either hits the max output voltage or the constant current limit is reached. These kind of a constant power supplies are often used to power up LED lights.

Constant current power supply unit technical details:

• Type of operation:
  • Switching mode constant current power supply
• Input voltage:
  • 220-240VAC
• Output voltage:
  • max 50VDC (depending on the load)
• Max output current:
  • 0,9A
• Max output power:
  • 30W
• Efficiency:
  • Not stated
• Power factor:
  • 0.95
• Low voltage alert:
  • No
• Indicators:
  • No
• I/O attachment method:
  • Screw terminal
    • Output has 400mm lead with 5,5x2,1mm DC male connector
      • Let us know if you don't need the cable, and we'll remove it here and store it with the lights, where there's a suitable counterpart.
    • Input has 100mm cable with plastic junction box with 2x strain relieves and push in connectors. It is then quite fun to stuff some MMJ (or ROMEX, or what ever the single core house hold stuff is called in your place) cable in them
• Mounting:
  • 2x 3,75mm holes on two corners
