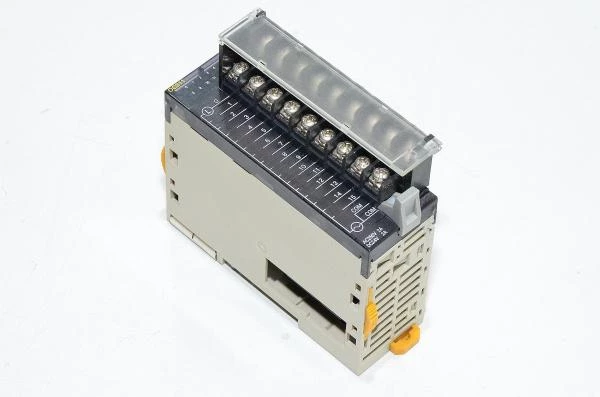

Omron CJ1W-OC211 output unit 16x relay outputs 250VAC/24VDC 2A, removable terminal blocks *new*

Basic I/O expansion block to be connected into programmable logic controller. If you need more I/O's, then you (most likely) need this!

Output unit technical details:

• Internal Current Consumption:
  • 110mA 5 DC max.
  • 96mA 24VDC max. (6mA × No. of ON points)
• I/O system :
  • CJ series I/O Bus
• Number of digital outputs:
  • 16x
• Digital output type:
  • Relay NO (Normally Open)
• Product Type:
  • Contact Output Unit with Terminal Block
• Max. Switching Capacity:
  • 2A 250VAC (cosφ = 1)
  • 2A 250VAC (cosφ = 0.4)
  • 2A 24VDC (8A/Unit)
• Min. Switching Capacity:
  • 1mA 5VDC
• Relays:
  • Fujitsu Takamizawa Components NY-24W-K-IE
    • For sure these can be replaced with soldering iron despite the datasheetes stated impossibility
• Service Life of Relay:
  • Electrical:
    • 150,000 operations (24VDC, resistive load)
    • 100,000 operations (250VAC, cosf = 0.4, inductive load)
  • Mechanical:
    • 20million operations
    • Service life will vary depending on the connected load
• ON Response Time:
  • 15ms max
• OFF Response Time:
  • 15ms max
• Number of Circuits:
  • 16 points/common, 1 circuit
• Insulation Resistance:
  • 20MΩ between external terminals and the GR terminal (500VDC)
• Dielectric Strength:
  • 2,000VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10mA max.

Download Omron CJ1W-OC/OA/OD output module technical datasheet
