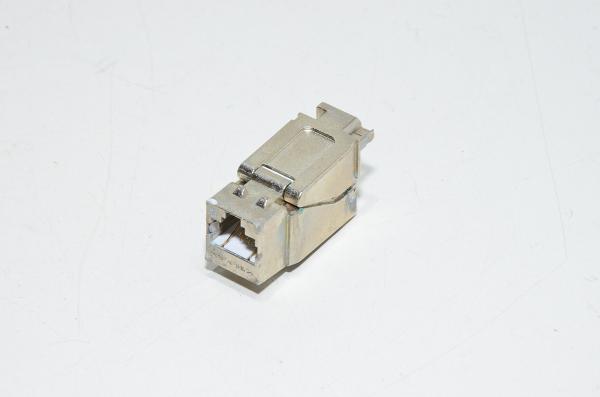

Kerman XG6S toolless shielded CAT6a LAN connector for keystone bezel *new*

The Kerman ethernet keystone jack CAT6a is an essential component for any high-performance network setup, offering superior speed, reliability, and flexibility. Its shielded design and compliance with CAT6a standards make it a preferred choice for environments demanding robust and interference-free data transmission. This keystone jack ensures your network infrastructure is equipped to handle the demands of modern data communication, providing a reliable and efficient solution for both commercial and residential applications.

The connector has minor oxidation due to storage. The problem is cosmetic. The pins and connectors are not oxidized because they are gold-plated.

Features:

• Product code:
  • XG6S
  • XG6S24 (code for 24x connector pakage)
• Compatible wires:
  • AWG22-24
• Compatible cable outer diameter:
  • 6...9mm
• Category 6a compliance:
  • Fully compliant with CAT6a standards, supporting 10 Gigabit ethernet (10GbE) over copper.
  • Offers a bandwidth of up to 500MHz, minimizing crosstalk and providing higher performance compared to Cat6 and Cat5e.
• Max operating voltage:
  • 125VAC RMS
• Max rated current (most likely per pin)
  • 1,5A
• Max PoE power:
  • 4PPoE 100W
• Max resistance:
  • 100mΩ
• Installation hole size:
  • 14,6x19,4mm (hole for keystone connector)
    • Max material thickness:
      • <2mm
• Materials:
  • Frame:
    • Nickel plated pressure molded zinc
  • Guide:
    • PC plastic UL94V-2
  • PCB:
    • FR4, UL 94-V0
  • Connectors contacts:
    • Nickel plated phosphor bronze, gold plating 50 μm
  • IDC's frame:
    • PC plastic, UL 94-V2
  • IDC's pins:
    • Tin plated phosphor bronze
• Shielded design:
  • Features a robust metal casing that provides shielding to reduce electromagnetic interference (EMI) and radio frequency interference (RFI).
  • Ideal for environments with high levels of interference, ensuring signal integrity and reducing noise.
• Modular keystone format:
  • Designed to snap into standard keystone patch panels, faceplates, and mount boxes.
  • Facilitates easy upgrades and replacements without needing to remove or replace the entire panel or plate.
• Toolless termination:
  • Incorporates a toolless design for easier and quicker termination of cables.
  • Includes a cable manager with color-coded labels for T568A or T568B wiring standards, ensuring proper pair alignment and termination.
  • Installation is simple, just peel couple cm of cable's outer sheet, unwrap wires as needed and place them in their slot's (the small color coded piece of plastic), trim the excess that goes outside of the plastic guide with sidepliers/scissors, assemble and close down (one may use pliers to snap the lid shut if lacking strength to do so by hand).
• Durable construction:
  • Built with high-quality materials to withstand frequent use and ensure long-term durability.
  • Gold-plated contacts provide reliable connections and minimize signal loss.

Applications:

• High-speed networking:
  • Suitable for data centers, server rooms, and other high-speed networking environments.
  • Supports 10 Gigabit ethernet applications, making it ideal for modern network infrastructures.
• Commercial and residential installations:
  • Used in office buildings, schools, hospitals, and homes for structured cabling systems.
  • Provides reliable connections for computers, servers, and other networked devices.
• Industrial environments:
  • Shielded design makes it suitable for industrial settings with potential for high EMI and RFI interference.

Benefits:

• Enhanced performance:
  • Ensures high-speed data transmission with minimal interference and signal degradation.
  • Supports future-proofing of network infrastructure, accommodating higher data rates and bandwidth requirements.
• Versatile and flexible:
  • Modular design allows for easy customization and scalability of network installations.
  • Simplifies maintenance and upgrades, reducing downtime and costs.
• Reliable and secure:
  • Provides secure connections with robust shielding, maintaining the integrity and security of data transmissions.
