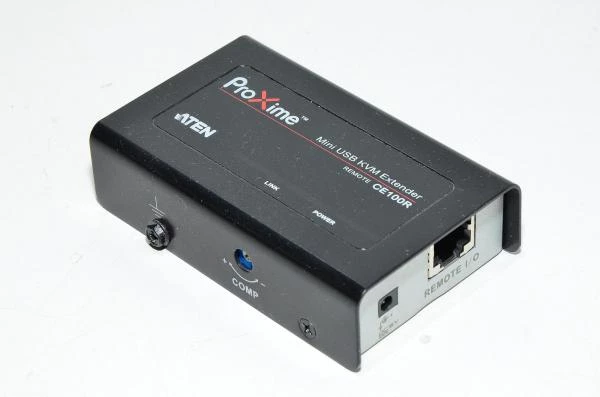

Aten Proxime CE100R mini USB KVM extender for VGA and USB signals (remote unit), 100m/30m

Small handy KVM (Keyboard, Video and Mouse) extender. Plug the local unit into the computer and wire LAN cabling to the remote unit and have your extended display, keyboard and mouse in operation somewhere else. In general extender's LAN cables DO NOT carry TCP/IP type network communication. Ie do not try to connect these into the local area network switches. These use purely the cable to their advantage and what and how it's transferred along the cable might vary between manufacturers.

Extender's technical specs:

• Extender type:
  • KVM extender, remote unit
• Compatible opposite pair:
  • Aten Proxime CE100L local unit
• Operating voltage:
  • 5VDC
• Max operating current:
  • 0,31A
• Connectors:
  • 15pin DE-15F female VGA connector (VGA output)
  • 2x USB type B male
  • 3,5x1,35mm male DC connector
  • 1x female RJ45 LAN connector
• LAN cable requirements:
  • CAT 5 or better
• Max resolution:
  • 1920x1200 @ 60Hz
• Max extension distance:
  • 30m 1920x1200 @ 60Hz
  • 100m 1280x1024 @ 60Hz
• Video compensation tuner adjustment
  • Is adjusted from the side via trimmer resistor (might help in some distortions/ghost images)
