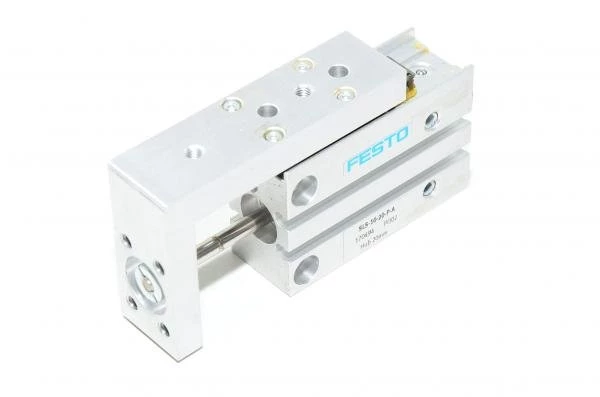

Festo SLS-10-20-P-A 170494 mini slide with linear guide

Manufacturer:

Festo
Model:
Festo SLS-10-20-P-A 170494
Dimension:
66 x 45 x 20 mm
Weight:
138 g

Availability: 11pcs
Condition: Used

Price Including VAT: 100,40€
Ex Tax: 80€

Quantity

pcs

Make an offer

Guided actuators are utilized in applications that call for high rigidity and high accuracy. Typically, an air cylinder and a precision guide are required to meet these needs. Linear guide gives the cylinder linearity and non-rotating accuracy. Small and compact design makes this ideal for applications where space is at premium. Also numerous ways of possible mounting options makes slide table a very versatile pneumatic actuator.

Pneumatics
Air connection	M5x0,8
Cylinder bore size	10mm
Filtration rate	5µm
Guide type	Linear guide with ball bearings
Magnetic piston	Yes
Max working pressure	1.0MPa (10bar)
Min working pressure	0,01MPa (1bar)
Operating medium	Compressed air, lubed or non-lube
Operating temperature	-20...60C
Operation	Double acting
Piston speed	800mm/s
Shock absorption	Flexible cushioning, non-adjustable
Stroke	20mm
