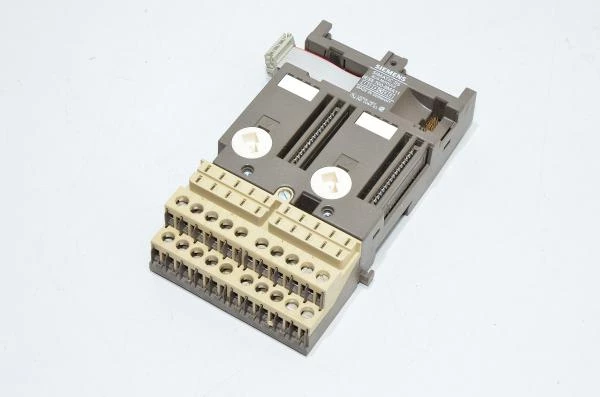

Siemens Simatic 6ES5 700-8MA11 bus module with 2x bus units

6ES5 700-8MA11 is a bus module designed for use with the Simatic S5-100U and S5-200U programmable logic controllers (PLCs). This module enables the connection and communication between process and I/O modules, allowing for the implementation of more complex automation applications.

Bus module technical details:

• Number of connectors in module:
  • 2
• Type of connection:
  • Sigut screw type terminals
• Number of bus units per programmable controller:
  • Max. 16
• Connection between two bus units:
  • Flat ribbon
• Number of terminals:
  • 10 per slots
• Insulation rating:
  • VDE 0160
• Rated insulation voltage:
  • 12VAC
• Insulation group tested with 500V:
  • 1x B
• Conductor cross sectional area:
  • Stranded:
    • 2x 0,5...1,5mm²
  • Solid:
    • 2x 0,5...2,5mm²
• Current consumption:
  • 1mA

Download Siemens 6ES5 700-8MA11 bus module technical datasheet
