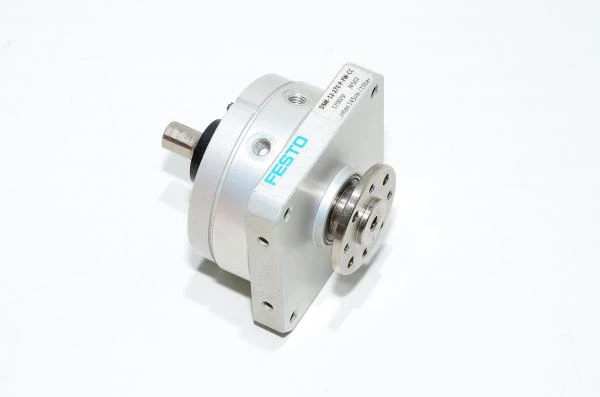

Festo DSM-12-270-P-FW 170079 vane type rotary actuator with hollow flanged shaft

  • Festo DSM-12-270-P-FW 170079 vane type rotary actuator with hollow flanged shaft
    Festo DSM-12-270-P-FW 170079 vane type rotary actuator with hollow flanged shaft Festo DSM-12-270-P-FW 170079 vane type rotary actuator with hollow flanged shaft Festo DSM-12-270-P-FW 170079 vane type rotary actuator with hollow flanged shaft
  • Manufacturer:
    Festo
    Festo
  • Model:
    Festo DSM-12-270-P-FW 170079
  • Dimension:
    60 x 60 x 68 mm
  • Weight:
    252 g
  • Availability: Out of Stock
  • Condition: Used

  • Price Including VAT: 62,75€

  • Ex Tax: 50€
pcs


Make an offer

0 reviews / Write a review

In these semi-rotary drives, the force is directly transmitted backlash-free to the drive shaft via a rotary vane. The swivel angle is infinitely adjustable from 0...184° (DSRL-10 and DSRL12: 0...181°). The adjustable stop system is separate from the rotary vane so that any forces which occur are absorbed by the stop blocks. The impacts are cushioned at the end positions by flexible plastic plates. DSRL-...-FW This design with hollow flanged shaft permits the passage of liquid or gaseous media, or even tubing or wiring.

Pneumatics
Air connection M5x0,8
Cylinder bore size 12mm
Max working pressure 1,0MPa (10bar)
Min working pressure 0,2MPa (2bar)
Operating medium Compressed air, lubed or non-lube
Operating temperature -10...60°C
Operation Rotary vane
Rotation angle 0-270°
Shock absorption Absorption pads
