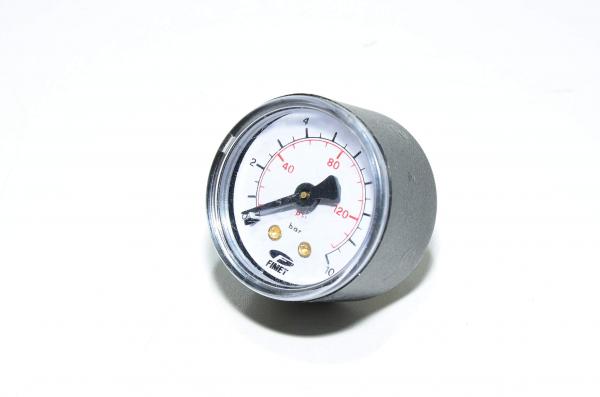

Fimet M3A-ABS 40 40mm pressure gauge with R1/8 connector 0-10Bar / 0-140psi

Basic pressure gauge for measuring pressure levels

Pressure gauge technical details:

• Nominal size:
  • 40mm
• Operating medium:
  • Liquid and gaseous media which are not highly viscous, do not crystallize and are not aggressive to copper alloys
• Construction and design:
  • Bourdon tube pressure gauge
• Type of mounting:
  • Screw-in
• Connector thread:
  • R1/8"
• Connection position:
  • Rear side, center
• Operating temperature:
  • -20...60°C
• Measurement accuracy class:
  • CL2.5
• Continuous load factor:
  • 0.75
• Intermittent load factor:
  • 0.6
• Protection class:
  • IP31
