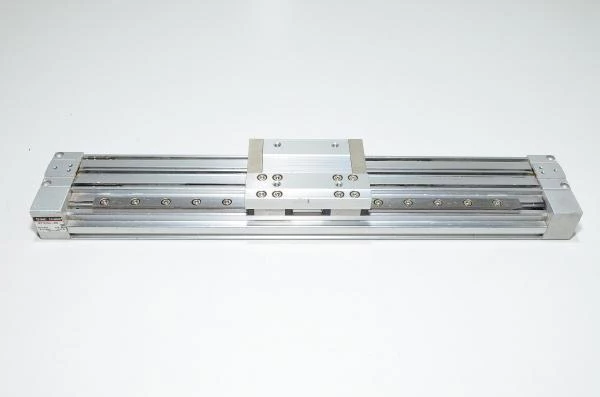

SMC MY1H16G-200 guided mechanical joint rodless cylinder with shock absorbers and stroke adjustment ball bearing type
- Manufacturer:
SMC - Model:
SMC MY1H16G-200 - Dimension:
360 x 60 x 41 mm - Weight:
1367 g - Availability: 2pcs
- Condition: Used
-
Price Including VAT: 225,90€
- Ex Tax: 180€
Linear rodless air cylinder or linear rodless actuators or pneumatic linear drive. All of these names represent the same device.
A rodless air cylinder differs from a basic air cylinder in that no piston rod extends outside the cylinder body. Instead, the internal piston is connected to an external carriage, by means of a magnetic or mechanical coupling system. Rodless air cylinders are ideal for long stroke applications because they are unaffected by rod overhang, bending, piston binding, and uneven seal wear, and for use in confined areas where space is a premium. This means high repeatability without the need of building external linear guides.
Download SMC MY1 series mechnically jointed rodless cylinders technical datasheet
| Pneumatics | |
| Air connection | M5x0.8 |
| Cylinder bore size | 16mm |
| Filtration rate | min 40µm |
| Guide type | THK 7A33 RSR 9KM guide with ball bearings |
| Magnetic piston | Yes |
| Max working pressure | 0,8MPa (8bar) |
| Min working pressure | 0,15MPa (1.5bar) |
| Operating medium | Compressed air non-lube |
| Operating temperature | 5...60C |
| Operation | Double acting |
| Piston speed | 100...1000mm/s |
| Shock absorption | Adjustable air cushion and SMC RB0806 shock absorbers |
| Stroke | 200mm adjustable |
Tags: rodless, RB-series, SMC, rodless actuator, 200mm, linear driver, linear trasnfer unit, M5, 16mm, MY1H-series, linear drive, driver, RB0806, rodless air cylinder, drive, actuator, cylinder, MY1-series
