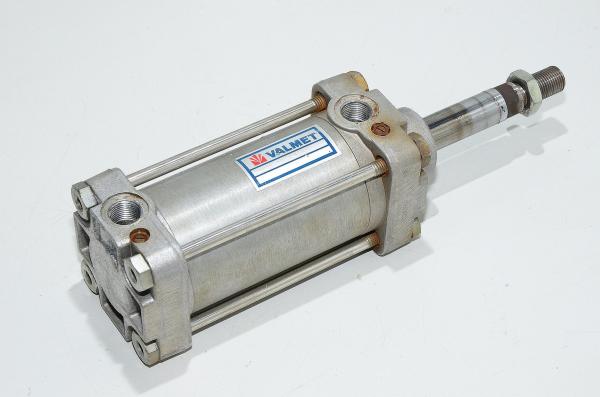

Valmet PICT-0963-50 double-acting ISO 6431 standard cylinder
- Manufacturer:
Valmet - Model:
Valmet PICT-0963-50 - Dimension:
76 x 76 x 242 mm - Weight:
1900 g - Availability: 2pcs
- Condition: Used
-
Price Including VAT: 94.13€
- Ex Tax: 75€
Multipurpose basic standard cylinder from Valmet. Deep down it might be made by Pimatic or it looks like you could compare it to one.
Pneumatics | |
Air connection | R3/8" |
Cylinder bore size | 63mm |
Filtration rate | min 40µm |
Magnetic piston | Yes |
Max working pressure | 1.0MPa (10bar) |
Min working pressure | 0,15MPa (1,5bar) |
Operating medium | Compressed air, lubed or non-lube |
Operating temperature | -30...80C |
Operation | Double acting |
Rod connection | M16x1.5 |
Shock absorption | Adjustable end-position cushioning |
Stroke | 50mm |
Tags: Pimatic, 100mm, double acting, standard cylinder, actuator, 60mm, ISO 6431, standard actuator, R3/8", PICT-series
