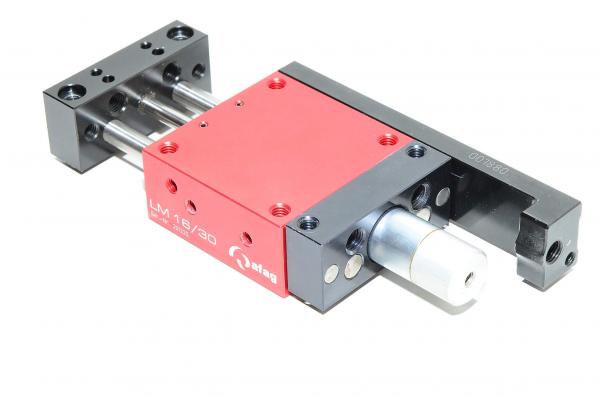

Afag LM16/30 11001864 linear module slide unit with, no stop screws + stroke limiter

  • Afag LM16/30 11001864 linear module slide unit with, no stop screws + stroke limiter
    Afag LM16/30 11001864 linear module slide unit with, no stop screws + stroke limiter Afag LM16/30 11001864 linear module slide unit with, no stop screws + stroke limiter
  • Manufacturer:
    Afag
    Afag
  • Model:
    Afag LM16/30 11001864 no stop screws + stroke limiter
  • Dimension:
    134 x 27 x 69 mm
  • Weight:
    530 g
  • Availability: Out of Stock
  • Condition: Used

  • Price Including VAT: 175,70€

  • Ex Tax: 140€
pcs


Make an offer

0 reviews / Write a review

Linear module from Afag. This unit can be combined with other Afag modules to archieve desired end result or if needed unit can be used as is in some other aplication. Linear drive is made with 2x guide shafts and single piston.

Download Afag LM12 and LM16 Linear modules maintenance instructions and module information datasheets

Download Afag CS, LM and PS modules technical overview sheet

Pneumatics
Air connection M5x0.8
Cylinder bore size 16mm
Filtration rate 10...40µm
Guide type Guide with slide bearings
Magnetic piston No
Max working pressure 0,8MPa (8bar)
Min working pressure 0,4MPa (4bar)
Operating medium Compressed air non-lube
Operating temperature 0...50°C
Operation Double acting
Repeatin precision +/-0.02mm
Shock absorption Stop screw AS 08/40 or AS 08/25 (sold separately) Shock absorber SD M8x1-2
Stroke 30mm
