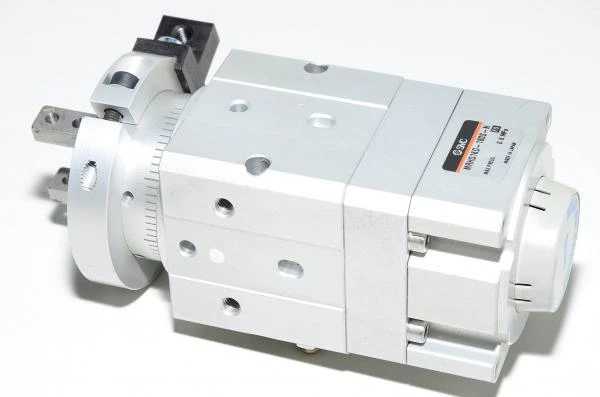

SMC MRHQ16D-180S-N Rotary air gripper with 2 fingers

Quantity

pcs

Make an offer

Pneumatics
Air connection	M5 x 0,8
Cylinder bore size	16mm
Filtration rate	5µm
Gripper type	2 finger dual acting
Gripping power to the inner surface	36N
Guide type	Linear guide (gripper)
Max working pressure	0,6MPa (6bar) Gripper 0,7MPa (7bar) Rotary actuator
Min working pressure	0,1MPa (1bar) Gripper 0,25MPa (2,5bar) Rotary actuator
Operating medium	Compressed air, lubed or non-lube
Operating temperature	5...60C
Operation	Double acting
Permitted turning time	0,07-0,3s/90degrees
Rotation angle	0-180 degrees
