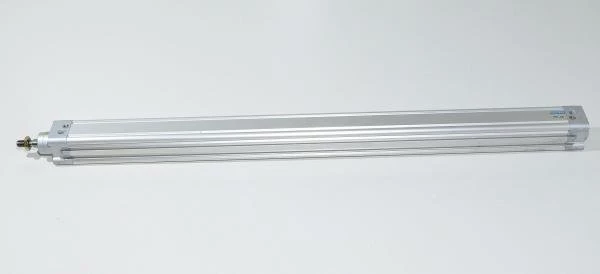

Festo DNC-32-600-PPV-A 163304 double-acting pneumatic cylinder ISO 15552

Manufacturer:

Festo
Model:
Festo DNC-32-600-PPV-A 163304
Dimension:
45 x 45 x 745 mm
Weight:
2280 g

Availability: 10pcs
Condition: Used

Price Including VAT: 94,13€
Ex Tax: 75€

Quantity

pcs

Make an offer

Multipurpose basic standard cylinder from Festo. Standard-based cylinder complies to requirements set by ISO 15552 standard, which corresponds to the requirements in withdrawn ISO 6431, DIN ISO 6431, VDMA 24 562, NF E49 003.1 and UNI 10290 standards.

Download Festo DNC series standard cylinders technical datasheet

Pneumatics
Air connection	G1/8
Cylinder bore size	32mm
Filtration rate	min 40µm
Magnetic piston	Yes
Max working pressure	1.0MPa (10bar)
Min working pressure	0,2MPa (2bar)
Operating medium	Compressed air, lubed or non-lube
Operating temperature	-20...80C
Operation	Double acting
Rod connection	M10x1.25
Shock absorption	Adjustable end-position cushioning
Stroke	600mm
