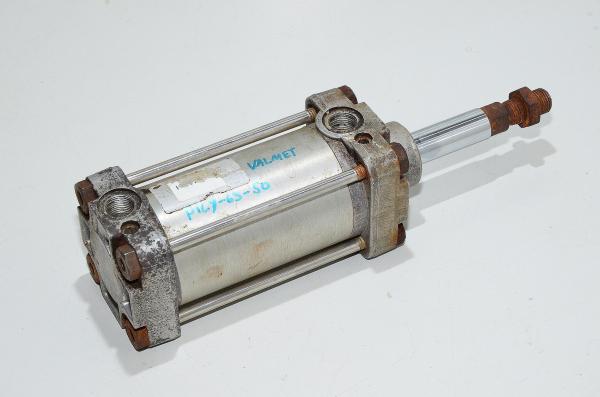

Valmet PICY-0963-50 double-acting ISO 6431 standard cylinder

Quantity

pcs

Make an offer

Multipurpose basic standard cylinder from Valmet. Deep down it might be made by Pimatic or it looks like you could compare it to one.

Pneumatics
Air connection	R3/8"
Cylinder bore size	63mm
Filtration rate	min 40µm
Magnetic piston	Yes
Max working pressure	1.0MPa (10bar)
Min working pressure	0,15MPa (1,5bar)
Operating medium	Compressed air, lubed or non-lube
Operating temperature	-30...80C
Operation	Double acting
Rod connection	M16x1.5
Shock absorption	Adjustable end-position cushioning
Stroke	50mm
