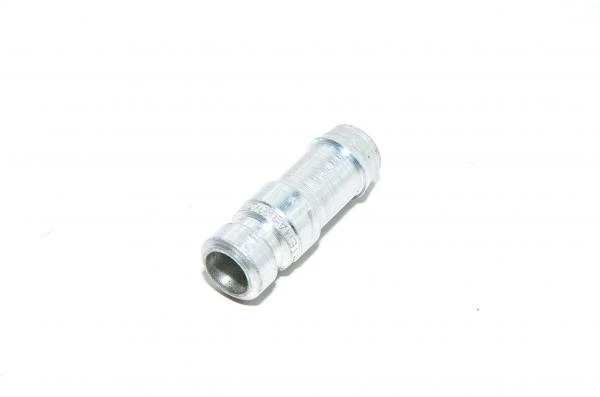

TEMA 182012 male nipple connector with 13mm hose barb, TEMA's 10mm connector profile

Very common quick release connector (QRC) among pneumatics. Can also be used for transporting liquids.

Quick connector technical details:

• Quick connector type:
  • Tith TEMA 10mm nominal diameter
• Back side connector type:
  • Hose barb for tube with 13mm inner diameter
• Material:
  • Body:
    • Steel
• Valve function:
  • Not present
• Operating style:
  • Defined by counter piece
• Operating temperature:
  • -20...100°C
• Max operating pressure:
  • 3.5MPa
• Min burst pressure:
  • 14MPa
• Compatible with the following manufacturers and their series:
  • CEJN 408
  • JWL 604
  • Rectus 32 KA
  • TEMA 1800
  • TEMA 1800 E
