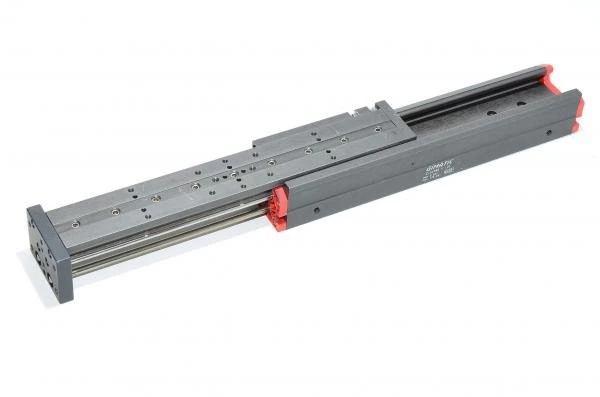

Gimatic Z-16150 dual rod pneumatic slide table with linear guide

Guided actuators are utilized in applications that call for high rigidity and high accuracy. Typically, an air cylinder and a precision guide are required to meet these needs. Linear guide gives the cylinder linearity and non-rotating accuracy. Small and compact design makes this ideal for applications where space is at premium. Also numerous ways of possible mounting options makes slide table a very versatile pneumatic actuator.

Dual rod series provides approximately twice the force output of a conventional cylinder. In other words twin rod design will produce nearly twice the punch in a almost the same size category.
