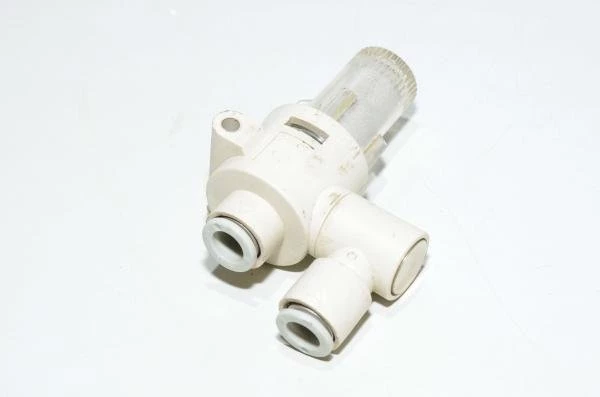

SMC ZFB200-08 swivel elbow air suction filter with white one touch fittings for 8mm tubes

Elbow type type air filter for removing small particles from air. Can be used for example with vacuum ejector to prevent suction cup sucking up s*** all the way to ejector causing it to clog ejector's own air filter (or internals) -> which in case results in additional cleaning work / exchange work and as usual someone has taken in account the device location from service perspective in a way that it will make you cry. So save time, money and nerves. Use filter where it is easiest to change.

Used filter cartridge is included with this unit as long as we have units with used filters in stock. In other words if we run out of used filters there will be emty units available.

Technical information:

• Connections:
  • 2x 8mm quick fittings
• Filter cartridge interchangeability:
  • Exchangeable (12x42mm tube with 8mm inner diameter)
• Recommended air flow:
  • 50l/min ANR
• Operating pressure:
  • -100...0kPa
• Withstand pressure:
  • 0.5MPa
• Element differential pressure resistance:
  • 0.15MPa
• Filtration:
  • 30µm
• Operating temperature:
  • 0...60°C
