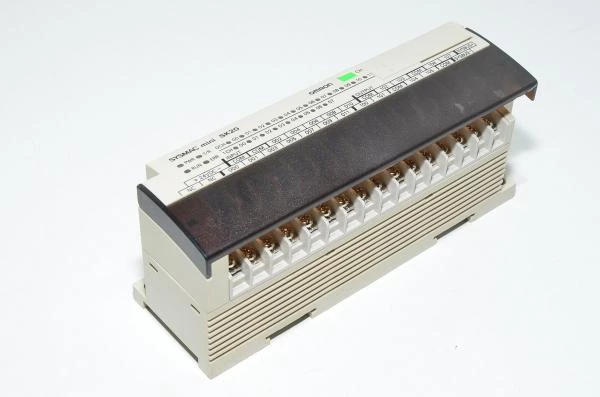

Omron Sysmac mini SK20-C1DR-D programmable controller, CPU unit

Omron SK20 series logics are equipped with multipurpose features, but regardless of that they still have a small size. Programmable controller has already few outputs and inputs which can be used to do something. If your device requires larger system then this existing PLC can be expanded through Sysmac BUS with other compatible devices.

Omron SK20-C1DR-D CPU unit technical details:

• Program capacity:
  • 348 words (about 200 instruction)
• Built-in inputs:
  • 12x DC inputs (24VDC / 6mA)
• Built-in outputs:
  • 8x relay outputs (24VDC / 250VAC 2A for each output)
• Built-in RS-232C port:
  • No
• Support of inner boards:
  • No
• Expansion support:
  • Yes through Omron Sysbus
• Memory backup:
  • Yes (Depending upon unit battery may require changing)
• Programming language:
  • Ladder logic
• Operating voltage:
  • 24VDC
• Mounting:
  • DIN rail

Download Omron Sysmac mini SK20 series programmable controllers operation manual
