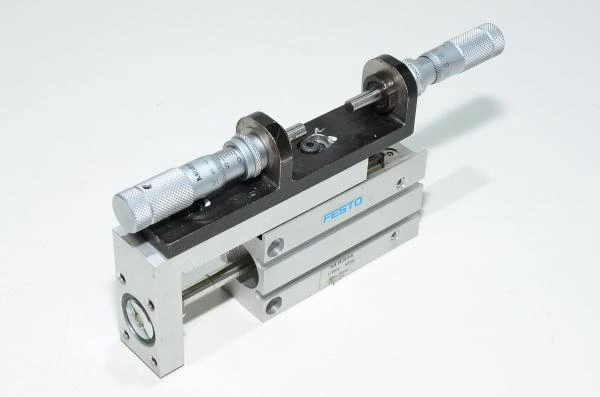

Festo SLS-16-30-P-A 170502 mini slide with linear guide + 2x Mitutoyo 148-504 micrometer heads for limiting stroke
- Manufacturer:
Festo - Model:
Festo SLS-16-30-P-A 170502 + 2x Mitutoyo 148-504 - Dimension:
165 x 24 x 77 mm - Weight:
516 g - Availability: 23pcs
- Condition: Used
-
Price Including VAT: 175.70€
- Ex Tax: 140€
Guided actuators are utilized in applications that call for high rigidity and high accuracy. Typically, an air cylinder and a precision guide are required to meet these needs. Linear guide gives the cylinder linearity and non-rotating accuracy. Small and compact design makes this ideal for applications where space is at premium. Also numerous ways of possible mounting options makes slide table a very versatile pneumatic actuator.
| Pneumatics | |
| Air connection | M5x0,8 |
| Cylinder bore size | 16mm |
| Filtration rate | 5µm |
| Guide type | Linear guide with ball bearings |
| Magnetic piston | Yes |
| Max working pressure | 1.0MPa (10bar) |
| Min working pressure | 0,01MPa (1bar) |
| Operating medium | Compressed air, lubed or non-lube |
| Operating temperature | -20...60C |
| Operation | Double acting |
| Piston speed | 800mm/s |
| Shock absorption | Flexible cushioning, non-adjustable |
| Stroke | 30mm |
Tags: guided, mini slide table, mini slide, Festo, SLS-series, compact slide table, compact slide, actuator, M5, 16mm, 30mm, guide, Mitutoyo, 148-series, micrometer screw, micrometer heads, micrometer
