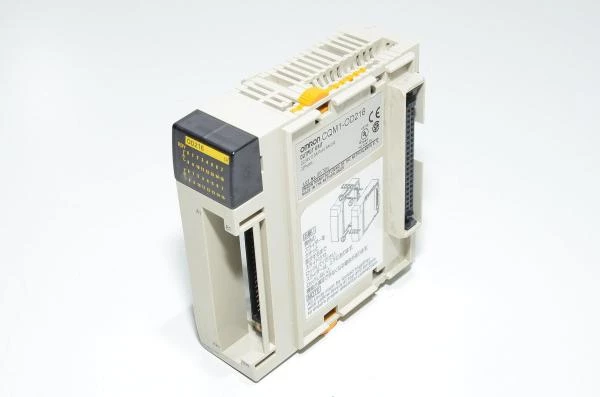

Omron Sysmac CQM1-OD216 32x output unit with 32x sourcing transistor outputs 24VDC 500mA

Output module which is compatible with Omron CQM1 and Omron CQM1H series programmable logics.

Omron CQM1-OD216 output unit technical details:

• Module type;
  • 32x point output module
• Max voltage / max current:
  • 5...24VDC 0,5A / point (5A max / unit)
• Build-in outputs:
  • 32x sourcing transistor outputs
    • 5...24VDC 0,5A / point (5A max / unit)
• I/O connection:
  • 40 pin D-connector like rectangular connector, which is compatible with the following connector models:
    • Fujitsu FCN-360 series rectangular connectors
    • Mitsubishi A6CON-2 (A6CON2) series crimped connectors
    • Mitsubishi A6CON-3 (A6CON3) series IDC connectors
    • Mitsubishi A6CON-4 (A6CON4) series soldered connectors
    • Mitsubishi Q40CBL-xx series premade cables
    • Mitsubishi FA-CBLQ75M2J2 series premade cables
    • Mitsubishi FA-CBLQ75M2C series premade cables
    • Mitsubishi FA-CBLQ75PM2J2 series premade cables
    • Mitsubishi FA-CBLQ75PM2C series premade cables
    • Omron C500-CE403 series pressure welded connectors
    • Omron C500-CE404 series soldered connectors
    • Omron C500-CE405 series crimped connectors
• Mounting:
  • DIN rail
