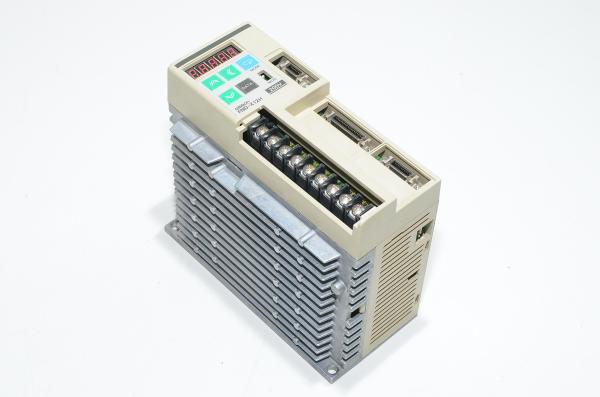

Omron Omnuc FND-X12H AC servo mootor driver with positioning, input 200-240VAC output 3~ 0-200VAC 0-100Hz 4.8A

User-friendly position drivers equipped with servodriver and positioner functions that construct positioning systems with ease

The FND-X series is now available in addition to Omron's conventional position drivers that are well known for their compactness, light weight, and ease of use. The FND-X position drivers are equipped with servodriver and positioner functions that attach importance to ease of use. These positioning functions enable the FND-X position drivers to operate in feeder control or PTP control mode for positioning based on internal or external data. The positioning functions include a pulse rate setting function that sets position data according to the moving distance of the machine and a position compensation function that ensures high-precision positioning. Furthermore, the FND-X position drivers connect to Omron's conventional Omnuc U, H, and M-series AC servomotor models and U-series UE models.The FND-X position drivers construct ideal single-axis positioning systems with ease.

Technical details:

• Operating voltage (single phase):
  • 200...240VAC
• Output voltage (3 phase):
  • 0...200VAC
• Output frequency:
  • 0...100Hz
• Max output current:
  • 4.8A
• Mounting:
  • 3x 6mm holes

Download Omron Omnuc FND-X series position driver user manual

Download Omron Omnuc FND-X series position driver technical overview
