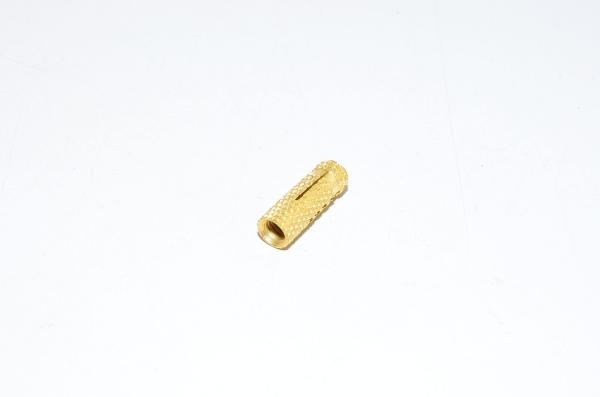

M6x1, RH, Friulsider 75100006000 knurled brass anchor for concrete, solid brick, stone and wood *new*

Multipurpose brass anchor for light and medium load installations into hard materials. Anchor is tightened with the screw that is installed into it.

Technical details:

• Material:
  • Brass, knurled
• Thread:
  • M6x1
• Thread direction:
  • Right-handed (RH, clockwise) thread
• Anchor dimensions:
  • 8x24mm
• Suitable installation hole:
  • 8mm
• Minimum thickness of the mounting base:
  • 35mm
• Minimum distance to edge:
  • 40mm
• Minimum distance to another anchor:
  • 60mm
• Tensile strength:
  • Concrete C20/25:
    • 0,85kN (85kg with 3x safety factor)
  • Brick:
    • 0,7kN (70kg with 3x safety factor)
• Compatible materials for installation:
  • Concrete
  • Solid brick
  • Stone
  • Wood
