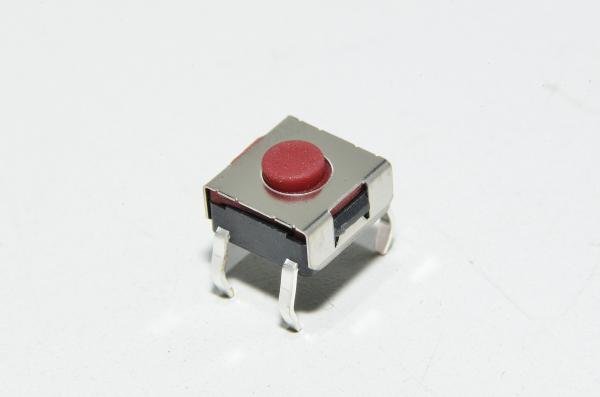

Multicomp MCDTSHW6-9N-B, 6.5x4mm, 3,8mm, 160g, 1x NO, washable tactile switch *new*

A tactile switch is an on/off electronic switch that is only on when the button is pressed or if there is a definitive change in pressure. Another way to consider it, as momentary make or brake switch. As soon as a tactile switches button is released, the circuit is broken.

Tact switches are tactile electromechanical switches for keyboards, keypads, instruments or interface control-panel applications, which require user to get a feedback when the switch is pressed. User receives confirmation of successful switching in a form of a clicking sound and feeling. For these kind of situations tact switches are perfect choice.

Tactile switch technical details:

• Button height (Measured between bottom of the switch and tip of the stem):
  • 4.3mm
• Max contact current:
  • 50mA
• Switch function:
  • Single push normally open (SPNO) (Single pole single throw SPST)
• Nominal contact voltage:
  • 12VDC
• Button operating force:
  • 160g (+/-50g)
• Switch connections:
  • 6.5x4mm hole layout, solderable
• Diameter of PCB holes:
  • 1mm
• Materials:
  • Cover:
    • Stainless steel
  • Base:
    • Nylon thermoplastic
  • Switching element:
    • Phosphor bronze with silver cladding
  • Cap:
    • Thermoplastic ABS
• Operating temperature range:
  • -25...+70°C
• Electrical life:
  • 500,000 operation cycles

Download Multicomp MCDTS series tact switches technical datasheet
