Tracer TS-6021EEHHPSC EMTC1001 color CCD 1/3" CCTV camera 3,6mm, PAL, 12VDC *not fully IP68*
- Manufacturer:
Tracer - Model:
Tracer TS-6021EEHHPSC EMTC1001 *not fully IP68* - Dimension:
300 x 300 x 50 mm - Weight:
1287 g - Availability: 1pcs
- Condition: Used
-
Price Including VAT: 87,85€
- Ex Tax: 70€

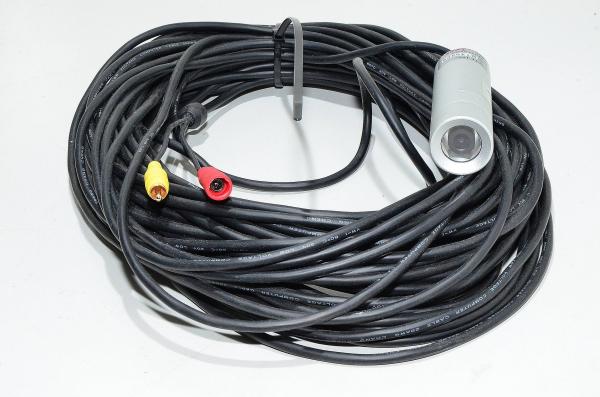

Small form factor camera which is IP68 water proof CCTV camera. Can be installed into demanding applications.
This unit has had undergone a cable repair and in case the full IP68 rating is desired the cable bulkhead should be sealed accordingly with silicone or such!
Download Tracer high resolution submersible color CCTV cameras technical datasheet
| Cameras | |
| AGC | Automatic (most likely) |
| Auto lens output | No |
| Color rendering | Full color |
| Electronic shutter | Automatic exposure adjustment 1/50...1/100000s |
| Gamma | 1.0 Fixed |
| Lens mount | Fixed 3,6mm/F2.0 lens |
| Mounts | Female 1/4-20 UNC thread according to ISO 1222:2010 standard |
| Operating temperature | -15...+55°C |
| Operating voltage | 12VDC 4,7W |
| Picture elements | 1/3" Sony EXVIEW HAD Ultra High sensitivity CCD sensor Light wavelength: 400-850nm (goes into infrared) |
| Resolution | 680 TV lines (1020x596 lines) |
| Sensivity | 0,005Lux |
| Signal-to-noise | >50dB |
| Synchronization | Internal synchronization |
Tags: solid state camera, camera, Tracer, CCTV, TS-series, IP68
