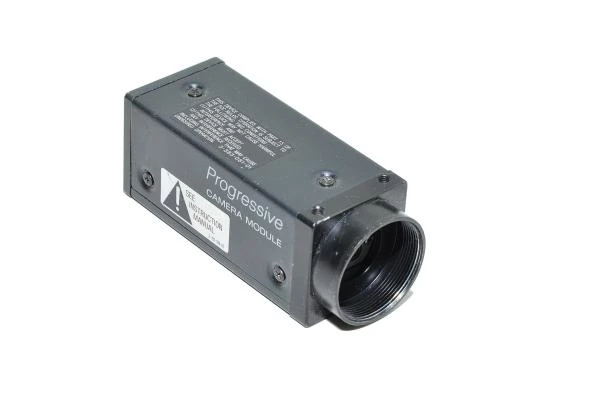

Sony XC-55 solid state monochrome 1/3" CCTV camera with C-mount

  • Sony XC-55 solid state monochrome 1/3" CCTV camera with C-mount
    Sony XC-55 solid state monochrome 1/3" CCTV camera with C-mount Sony XC-55 solid state monochrome 1/3" CCTV camera with C-mount Sony XC-55 solid state monochrome 1/3" CCTV camera with C-mount
  • Manufacturer:
    Sony
    Sony
  • Model:
    Sony XC-55
  • Dimension:
    82 x 29 x 29 mm
  • Weight:
    105 g
  • Availability: 6pcs
  • Condition: Used
  • Price Including VAT: 175.70€

  • Ex Tax: 140€
pcs


Make an offer

The ultra-compact XC-55 monochrome camera features a progress scan CCD and provides full frame images. Its precisely installed CCD ensures accurate alignment and its miniature size allows for access in space restricted applications.

Features and benefits

  • 1/3 IT Progressive scan CCD
  • One Piece
  • Square Pixels:
    • 7.4 µm x 7.4 um
  • Progressive Scan Format:
    • 1I : 2:1 Interlaced
    • 1N: Non-Interlaced
  • Frame Shutter:
    • Normal (1/100...1/ 8000s)
    • E-Donpisha II (1/ 4...1/ 100,000s)
  • Sensitivity:
    • 400 lx (F5.6)
  • Minimum Illumination:
    • 0.5 lux (AGC, F1.4)
  • S/N Ratio:
    • 56 dB
  • Gain :
    • AGC
    • Fixed(0dB)
    • Manual (0...18dB)
  • Sync System:
    • Internal/External (HD/VD)

CS-mount can house C-mount lense if used 5mm adaptor ring. CS-mount focal point is (the distance between lens and the sensor) 12.5mm and C-mount has 17.526mm in between so this is why 5mm ring is needed when using C-lens in CS-mount.

Just to simplify this:

  • CS-mount - CS-lens = ok
  • CS-mount - (5mm adapter ring) C-lens = ok
  • C-mount - C-lens = ok
  • C-mount - CS-lens = no no

Suitable applications for camera:

  • Industrial machine vision applications
  • Surveillance
  • Covert Installations
  • Access Control
  • Transportation Systems
  • Gaming
  • Robotic Vehicles
  • Loss Prevention
  • Image Processing
Cameras
AGC Auto or manual control and fixed 0dB
Auto lens output No
Color rendering Monochrome
Electronic shutter Normal shutter: 1/100...1/8000s Trigger (E-DONPISHA II) sutter: 1/4...1/100000s
Gamma Selectable 0.45 or 1.0
Lens mount C-mount
Mounts 2x M3 on top and 4x M3 at the bottom (there is 1/4" mounting bracket available into theese holes as an accessory)
Operating temperature -5...+45°C
Operating voltage 12Vdc (10.5...15Vdc) 1.8W
Picture elements 1/3" Interline transfer Progressive Scan CCD
Resolution 500HTVL/30f/s (Horizontal TV Lines) 659 (H) x 494 (V) picture element and 646 (H) x 485 (V) for video output
Sensivity 0.5lux F1.4
Signal-to-noise 56dB
Synchronization Internal / external: HD/VD
