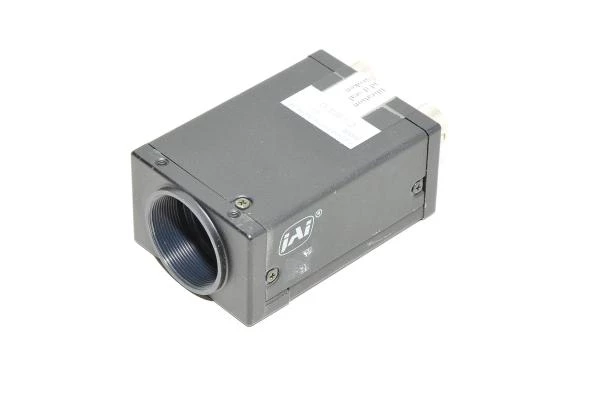

Jai CV-A50C solid state monochrome 1/2" CCTV camera with C-mount

Features and benefits

• Compact size 1/2”
• CCIR: 752 (h) x 582 (v) pixels. EIA: 768 (h) x 494 (v) pixels
• Improved sensitivity, dynamic range and smear performance
• High S/N ratio up to 60 dB
• Extended range of functions and options compared with CV-M50 model
• Shutter speeds from Off to 1/10,000s.
• Programmable exposure
• Interlaced or non-interlaced scanning. Field or frame accumulation
• Internal, external HD/VD or random trigger synchronization
• Edge pre-select, pulse width control, start/stop trigger modes
• Long time exposure with external VD pulse interval
• Frame-delay read out in connection with pulse width controlled shutter
• Exposure enable EEN, write enable WEN and pixel clock output
• Short ASCII commands for fast mode setup via serial port
• Setup by Windows 95/98/NT software via RS 232C

Functions controlled by RS-232C:

• Scanning format
• Trigger mode
• Shutter speed
• Trigger / WEN polarity
• Accumulation
• Shutter mode
• Programmable exposure
• AGC level
• White clip
• Setup
• Manual gain
• AGC / manual gain
• Internal / potentiometer gain set
• Gamma
• Pixel clock
• Commands and internal adjustments

CS-mount can house C-mount lense if used 5mm adaptor ring. CS-mount focal point is (the distance between lens and the sensor) 12.5mm and C-mount has 17.526mm in between so this is why 5mm ring is needed when using C-lens in CS-mount.

Just to simplify this:

• CS-mount - CS-lens = ok
• CS-mount - (5mm adapter ring) C-lens = ok
• C-mount - C-lens = ok
• C-mount - CS-lens = no no

Suitable applications for camera:

• Industrial machine vision applications
• Surveillance
• Covert Installations
• Access Control
• Transportation Systems
• Gaming
• Robotic Vehicles
• Loss Prevention
• Image Processing
