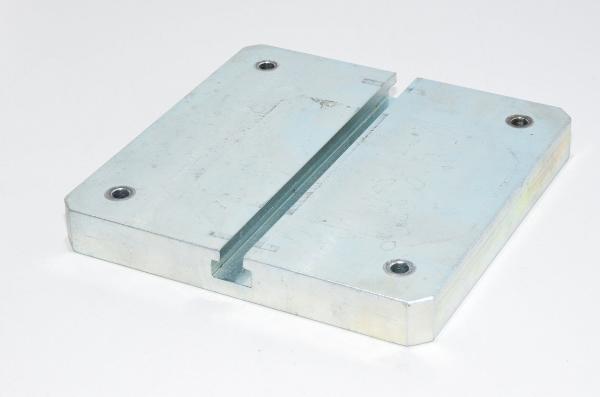

160x160x20mm steel jig table with T-slot and 4x 7mm mounting holes equipped with M12x1.25 threads for adjustment screws
- Manufacturer:
Unknown manufacturer - Model:
160x160x20mm steel jig table, T-slot, 4x 7mm holes with M12x1.25 - Dimension:
160 x 160 x 20 mm - Weight:
3718 g - Availability: 1pcs
- Condition: Used
-
Price Including VAT: 81,58€
- Ex Tax: 65€
Fixed T-slot table, designed to be used on drilling and milling machines, special holding assemblies and in any mechanical application in which X position has to be controlled.
T-slot table technical information:
- Table size:
- 160x160x20mm
- Material:
- Steel
- T-slot spesifications:
- Slot opening:
- 17,3mm
- Slot depth:
- 13,3mm
- From which neck part height is:
- 5mm
- From which neck part height is:
- 13,3mm
- Slot bottom part dimensions:
- 17,3x7,7mm
- Intended for:
- M10 screws
- Slot opening:
- Mouting holes:
- 4x 7mm trough holes, with 13mm deep M12x1.25 thread on the back side for jig table adjustment screws
