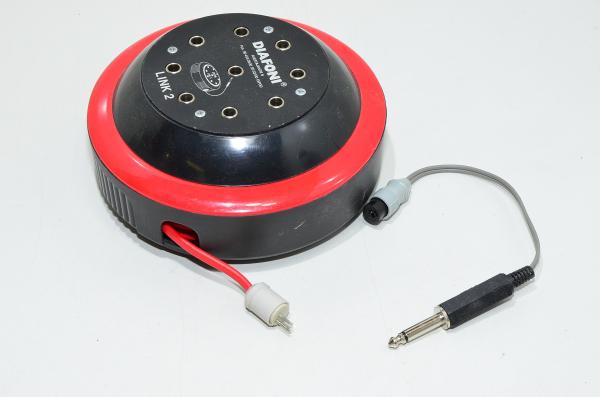

Diafoni Link 2 speaker signal extension cable 9,9m with 8x 6,3mm mono jacks for headphone connection

Speaker signal listening splitter panel with extension cord. The device allows multiple headphones or other suitable test devices to be connected to the same signal.

Extension cord technical specifications:

• Cable length:
  • 9.9m red 2x approximately 1mm²
• Cable connector type:
  • 2-pin DIN speaker connector
• Splitter panel connections:
  • 1x 6.3mm mono jack without resistors providing full signal without attenuation.
  • 8x 6.3mm mono jacks with 100Ω/200mW series resistors on both conductors (both + and -) attenuating the signal and protecting the connected devices or enabling multiple devices to be connected to the same signal without excessive load.
• Intended use (most likely):
  • The signal is routed from an amplifier to the desired location, and headphones (up to 8 pcs) are plugged into the splitter panel. The center connector can be used to chain another similar unit via the included adapter cable.
  • This can be used for some DIY project. If needed, the resistors on the circuit board under the splitter panel can be swapped (or bypassed) to suit your own needs.
